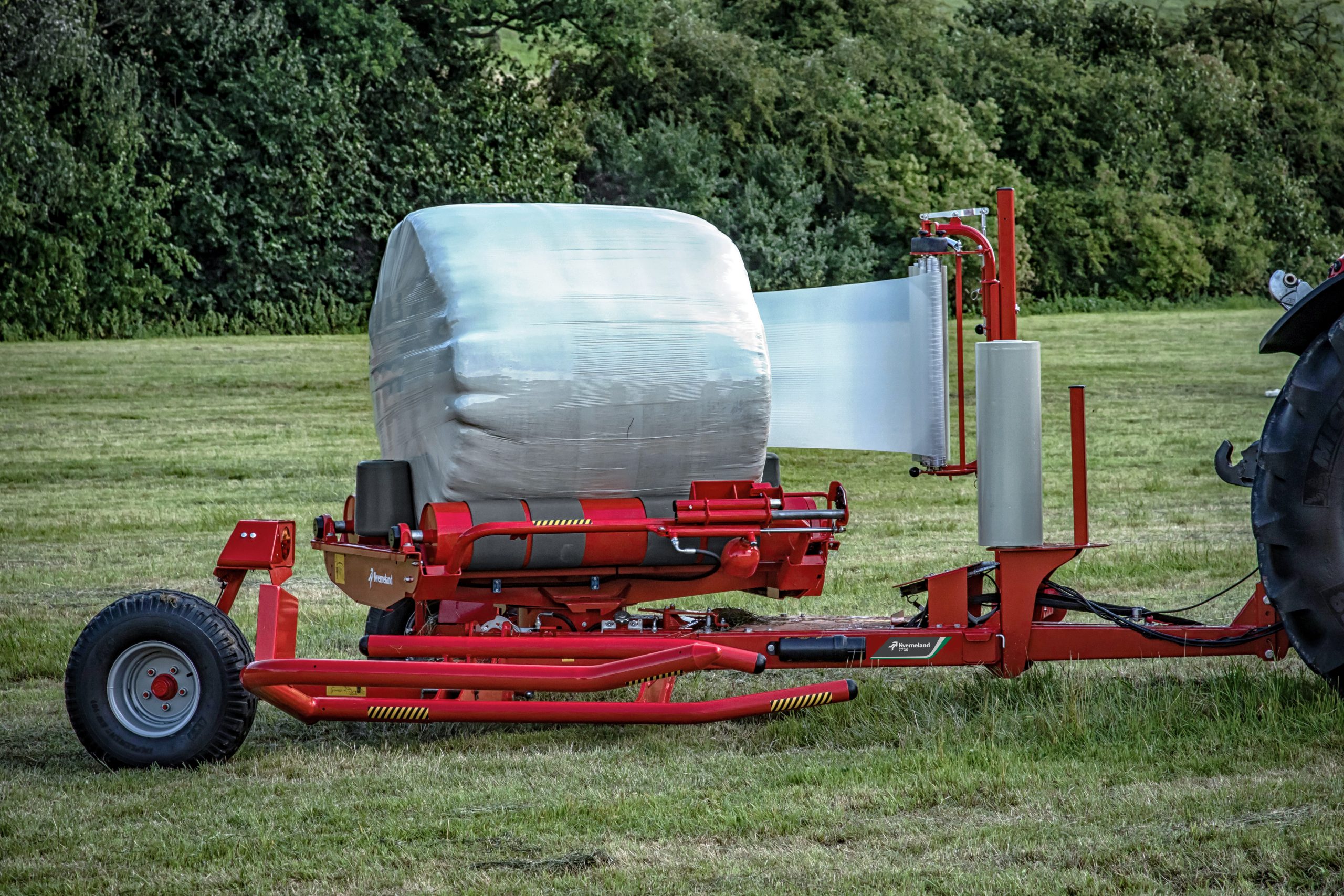

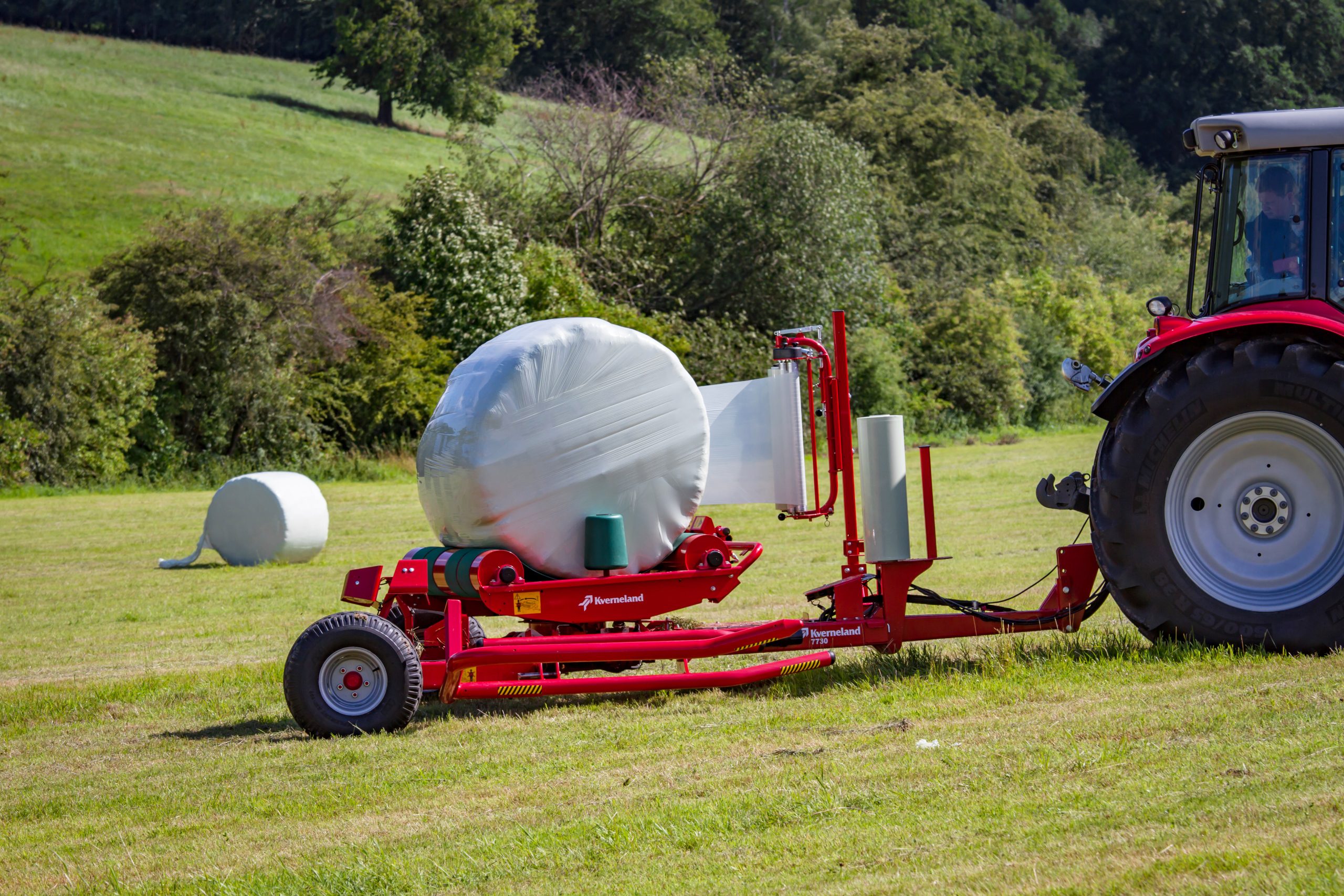

Kverneland Turntable bale wrappers have been designed to offer fast and accurate wrapping of your precious forage crops. An investment in a Kverneland bale wrapper is your guarantee of cost-effective bale wrapping.
- Turntable trailed wrapper
- Max bale size: 1.20x1.50m
- Easy change film rolls
- Hydraulic Film Cutter
Features

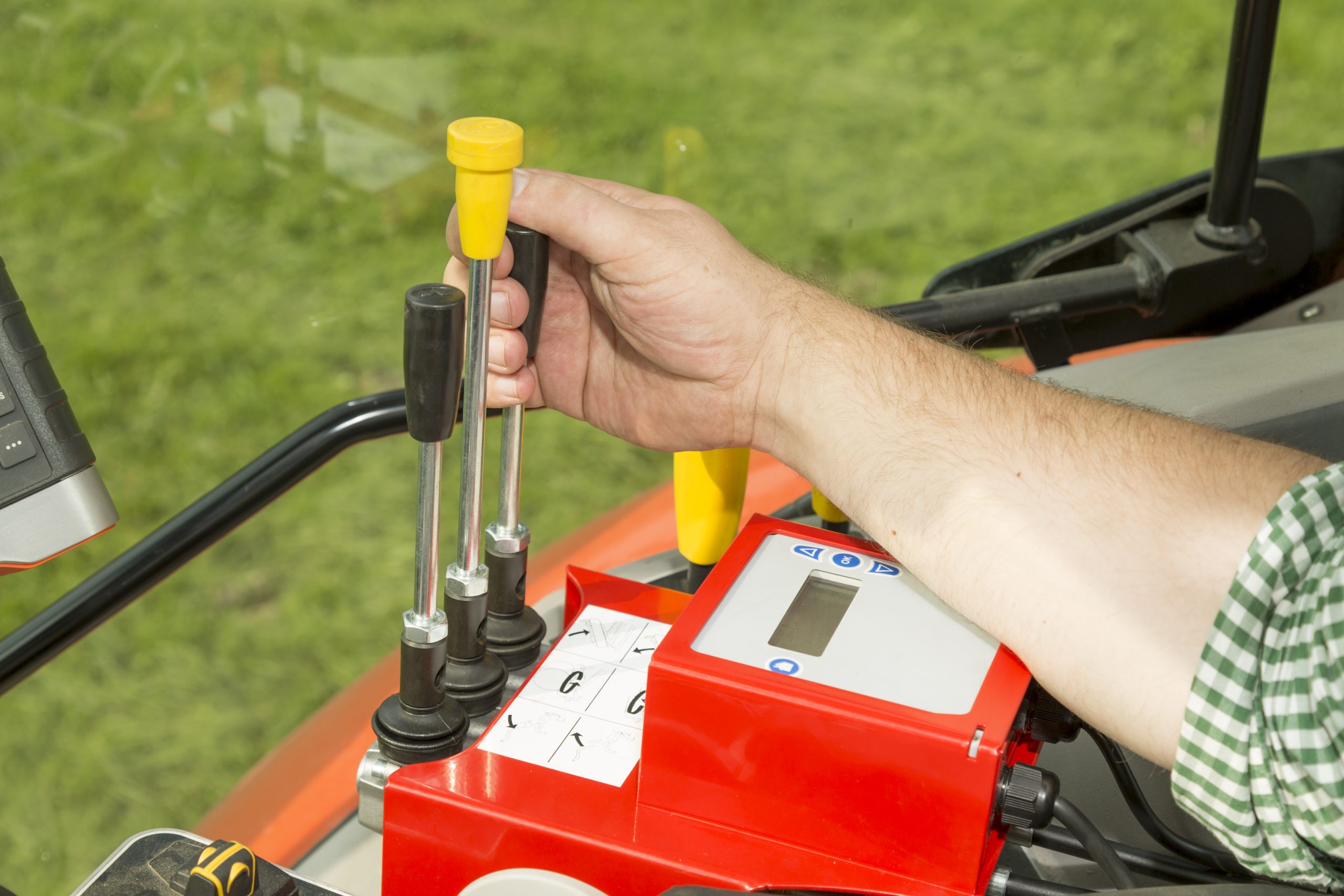

Mechanical Control
The 7730M uses manual cable controls with levers, plus a wrap and bale counter for accurate film layers and bale tracking. An automatic table stop is fitted as standard.

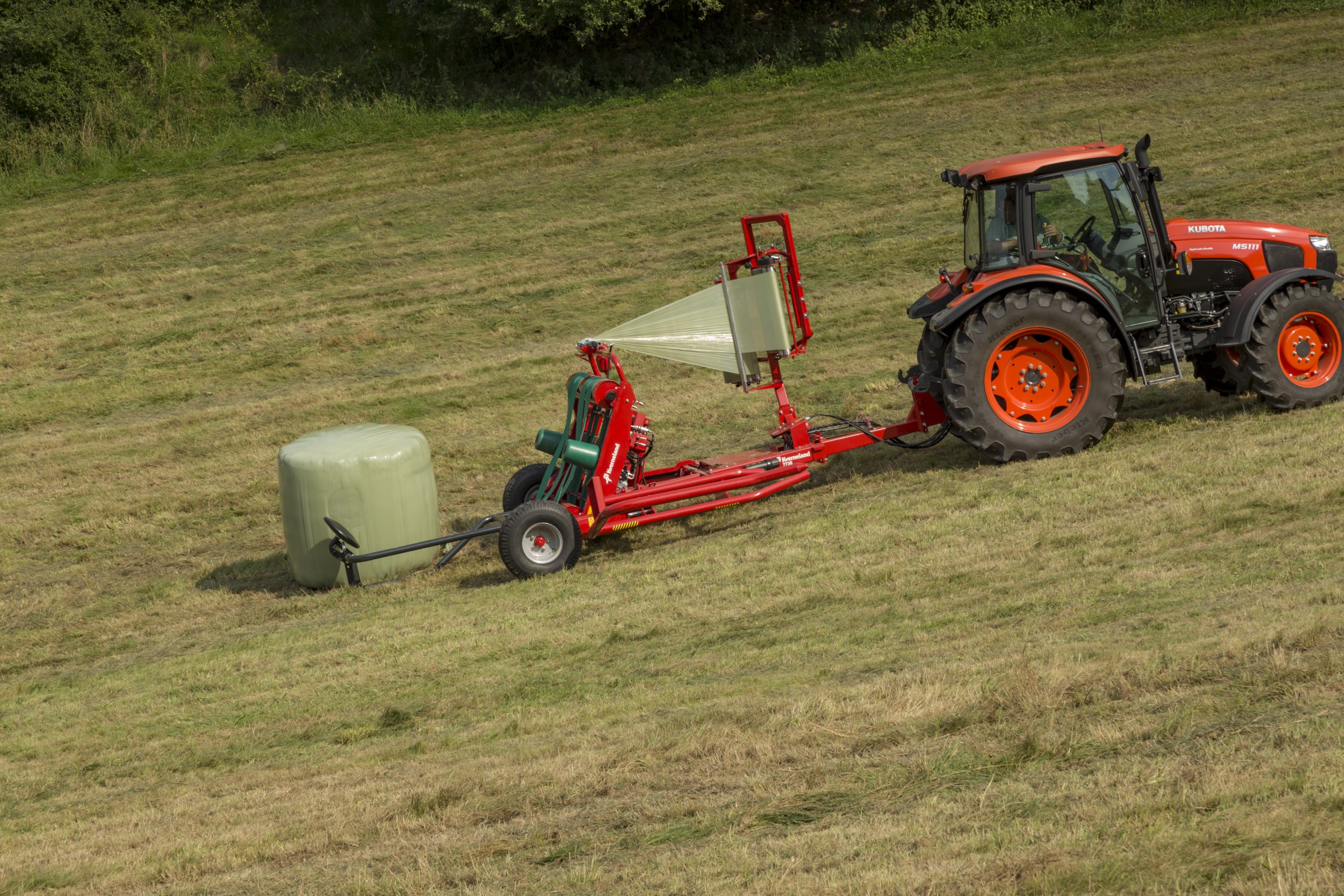

Side Tip
The Kverneland 7730M wrappers are fitted as standard with a bale on end kit.

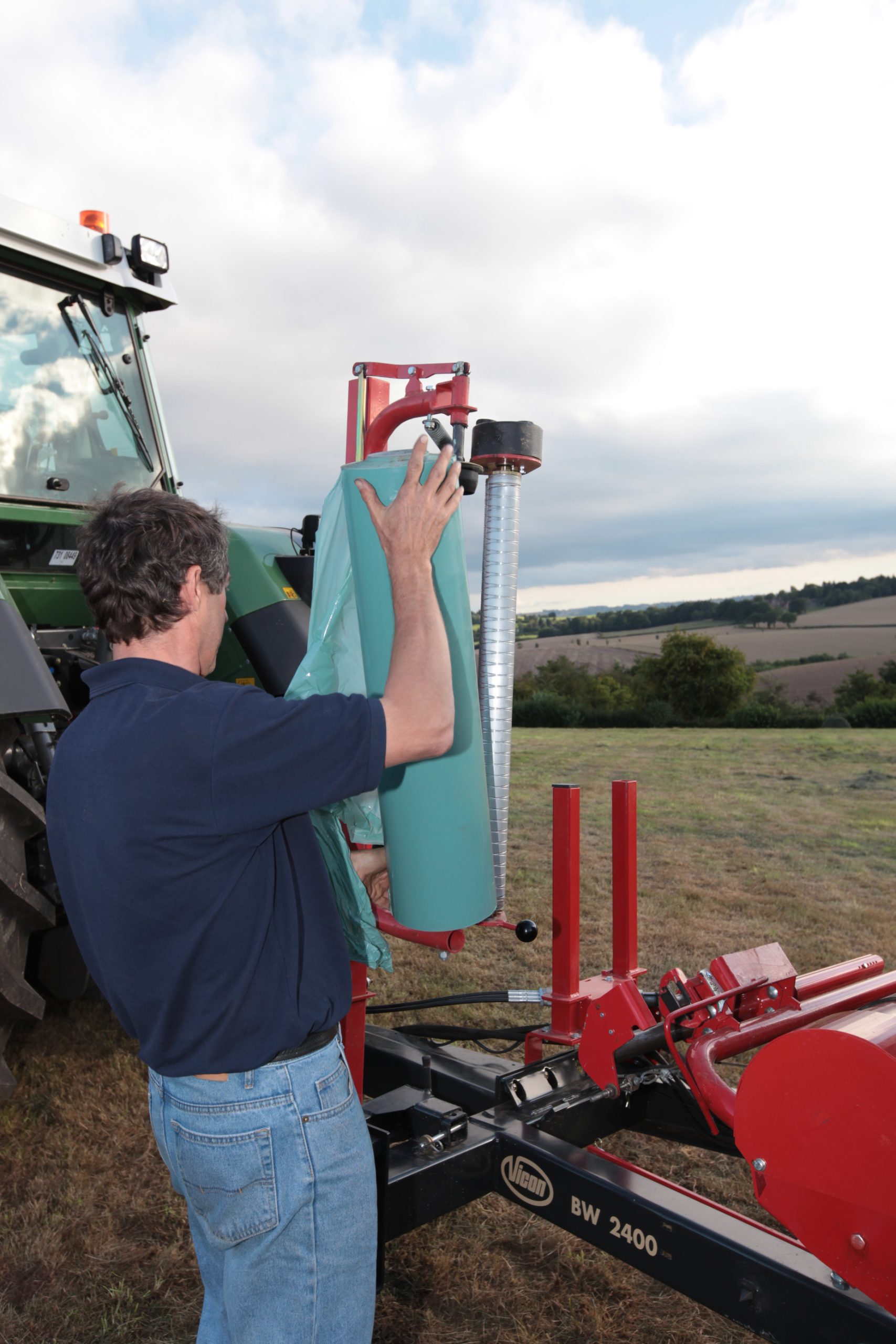

Easy Roll Loading
Change of film roll is quick and easy with Kverneland pre-stretchers. The empty core is released by pushing down a single lever with one hand, all in one movement. Locate the new film roll, flick the handle back in position, and the roll is instantly locked.

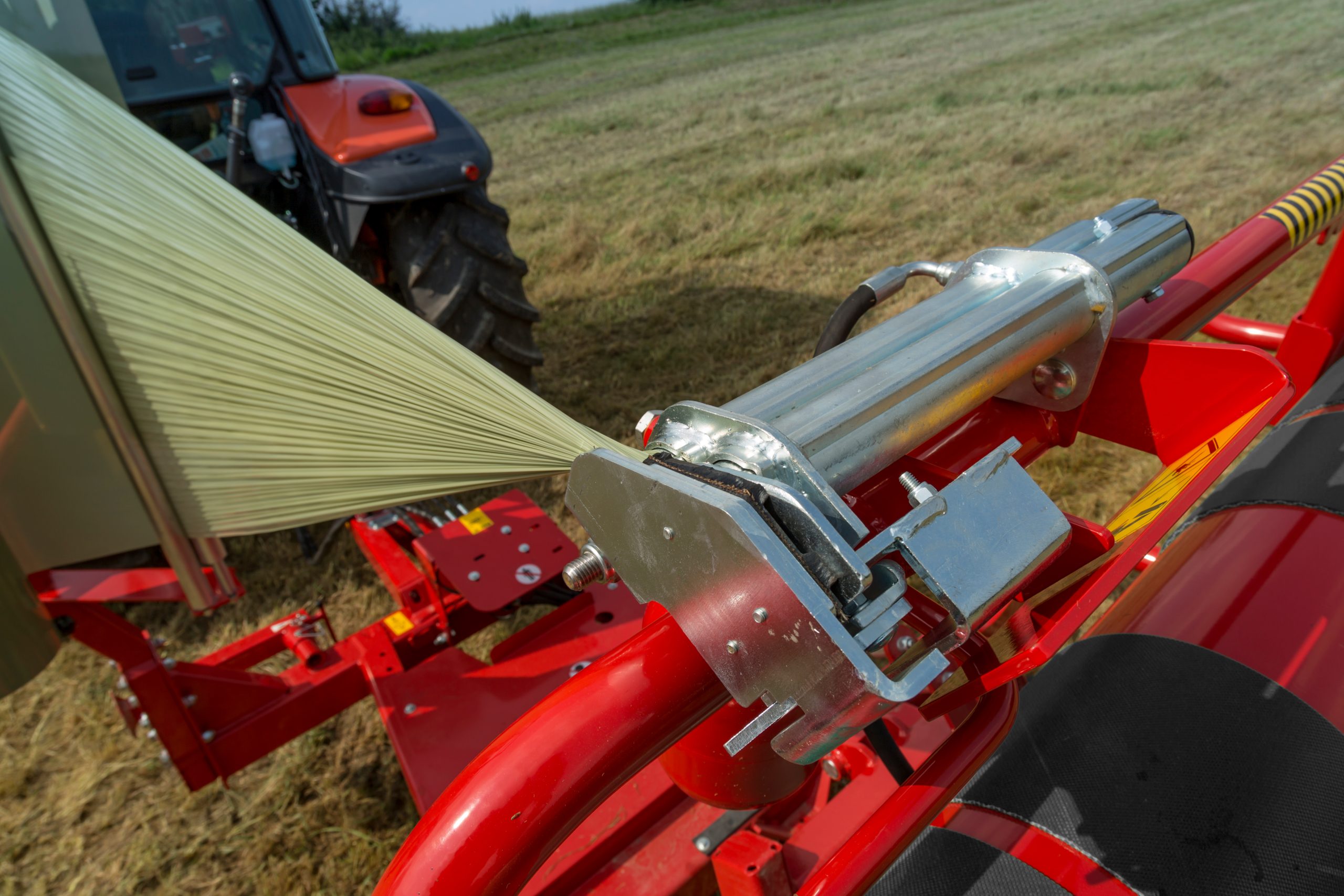

Hydraulic Film Cutter
All Kverneland turntable wrappers feature a hydraulically operated film cut and hold device. Fully automatic operation assures reliable operation over many thousands of bales.
Low Level Table
Two large driven rollers ensure reliable bale rotation in tough conditions. Four endless belts support and rotate the bale evenly without damaging the film, while conical side rollers keep it centred during wrapping.

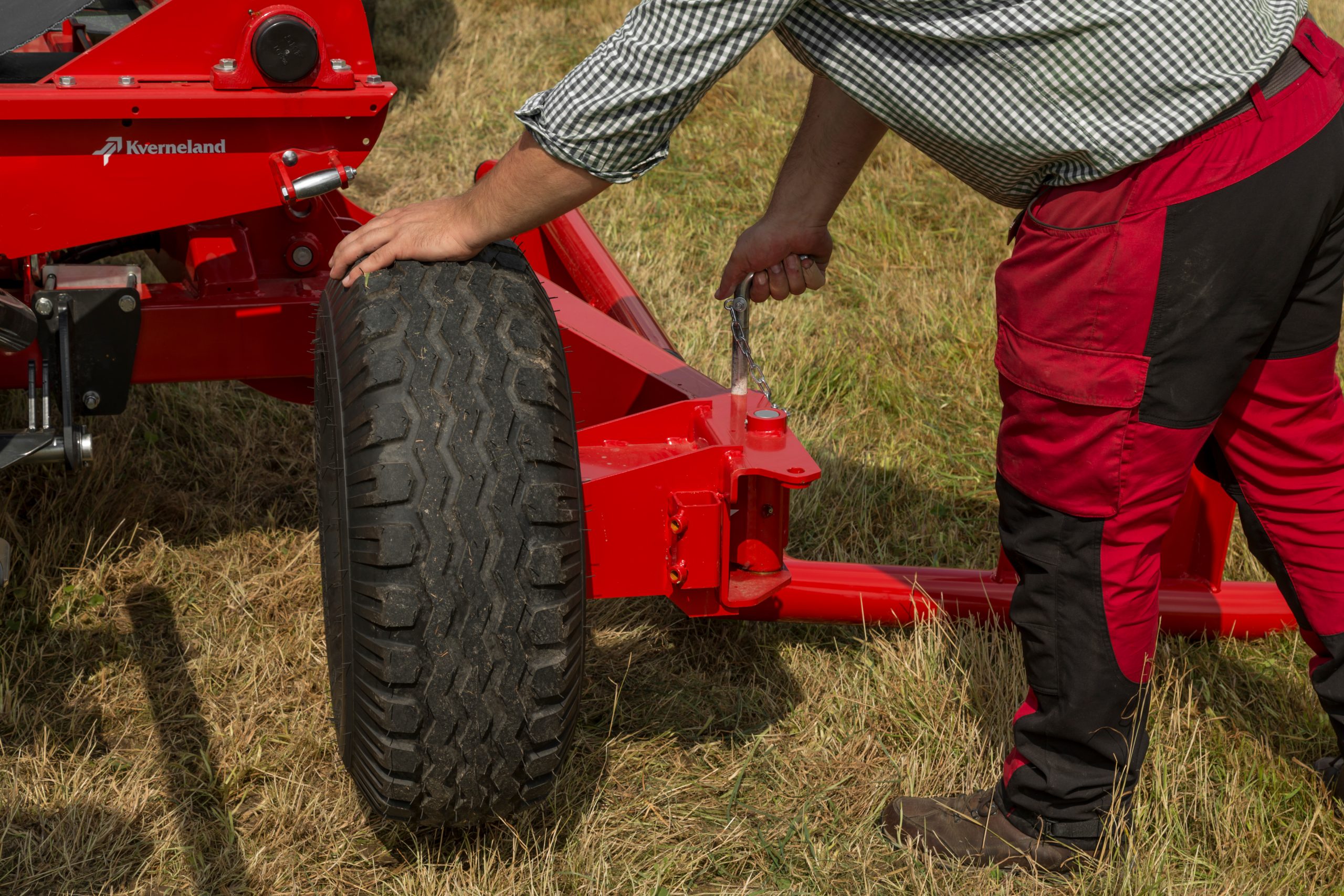

Narrow Transport Adjustment
To achieve a narrower transport width, the right hand wheel is turned to the inside of the support arm. The loading arm is powered fully down to lift the wheel off the ground for easy movement from work to transport.
Specifications
7730M
Length: 4.32m
Transport Width: 2.52m
Transport Height: 1.95m
Weight: 1020kg
Max Bale Size: 1.20 X 1.50
Max Bale Weight: 1200kg
Support rollers/belts: 2/4 nb
Automatic film cutter
1 Pre-stretcher 750mm
Max. Wrapping Speed: 30rpm
Oil Consumption: 28L/Min
