MODELS 520 | 620

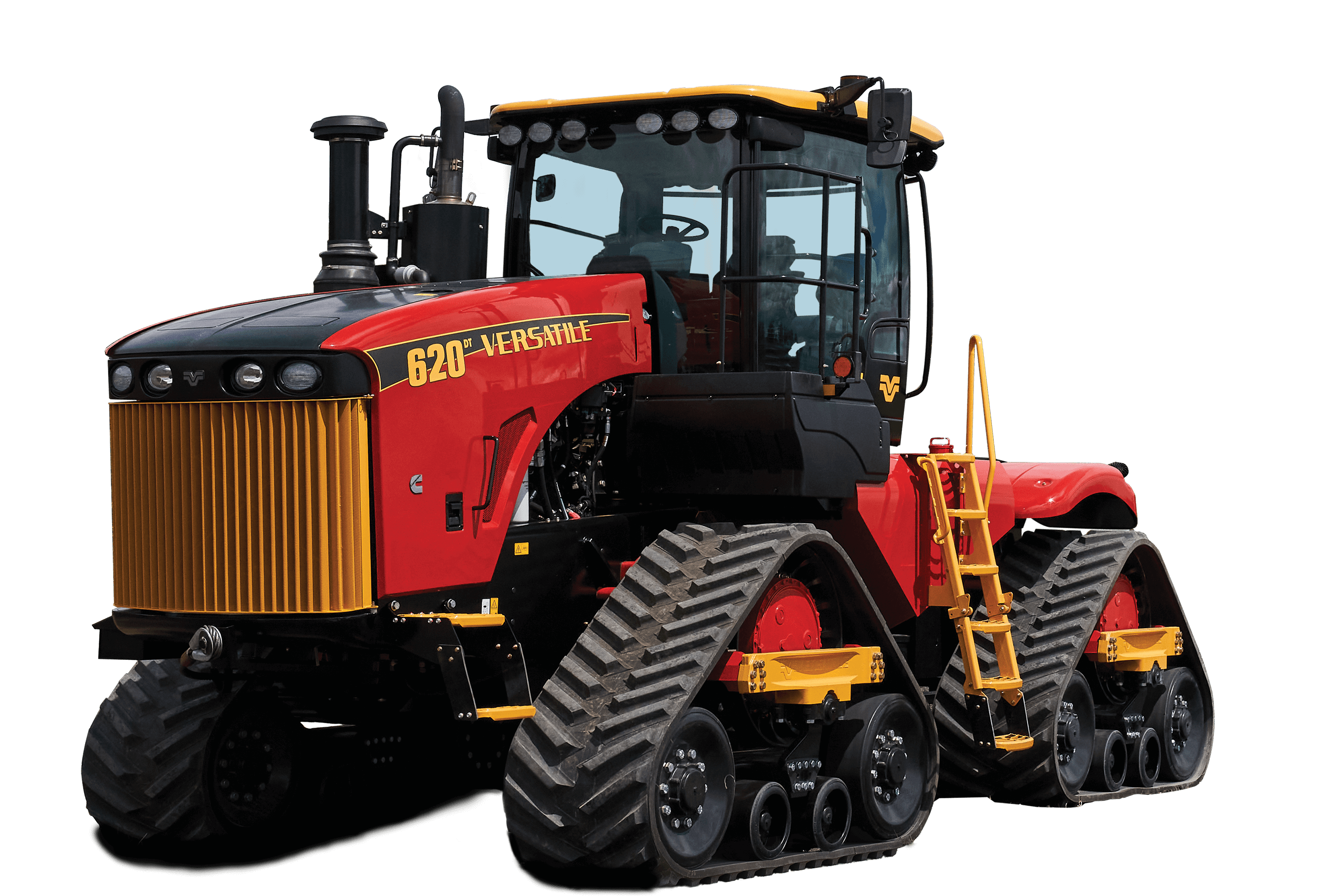

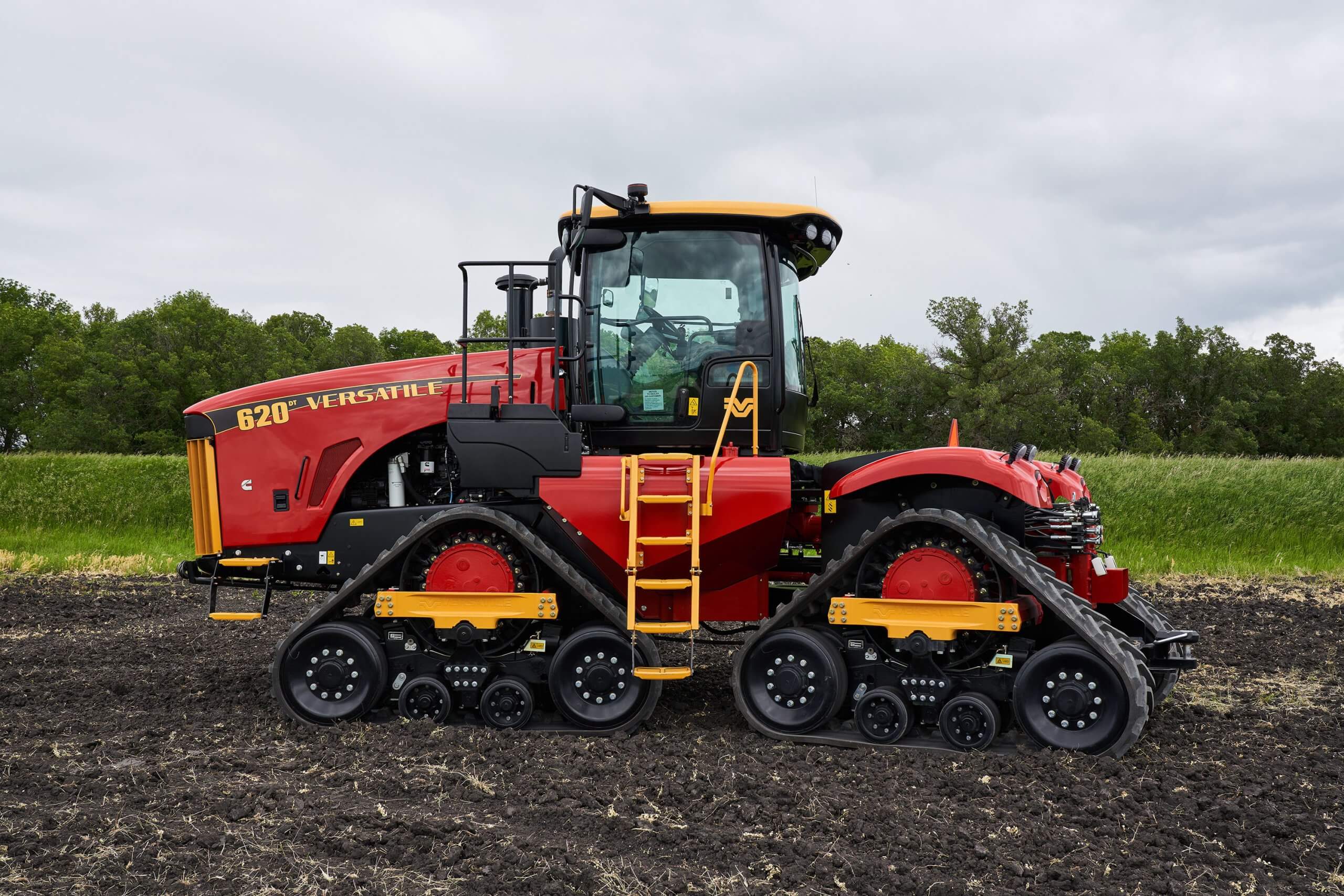

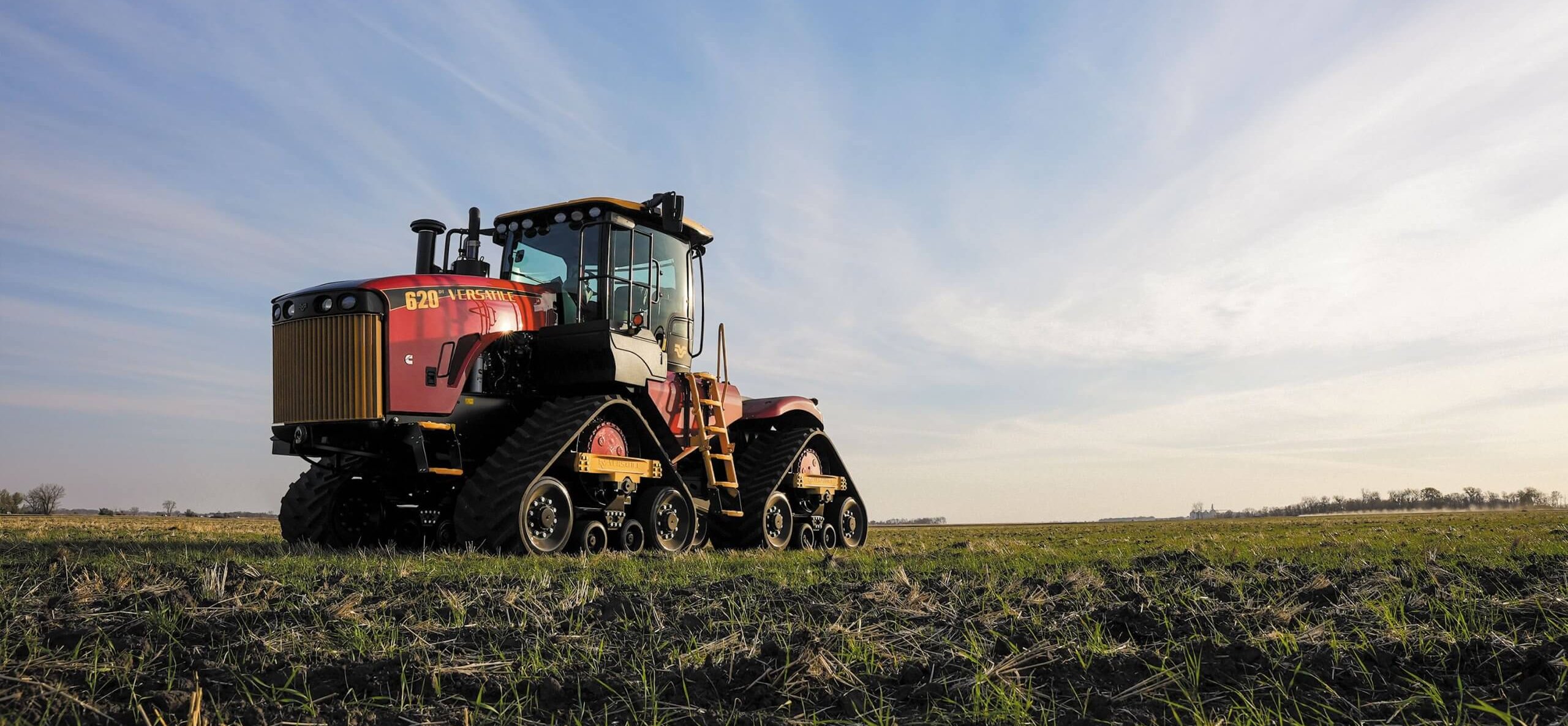

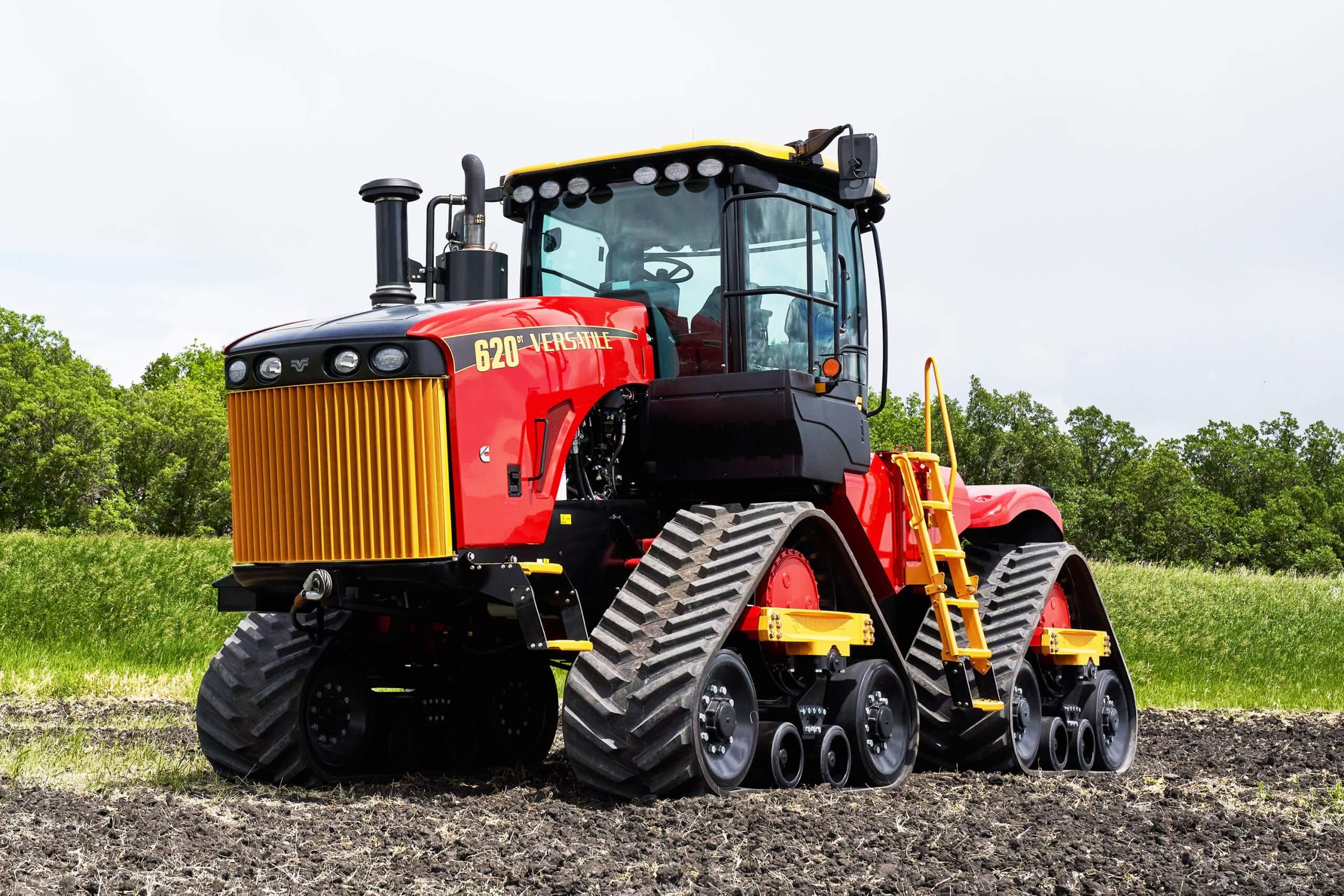

The Versatile DeltaTrack is a fully integrated, purpose-built four track system from Versatile. Available in two models 520DT and 620DT, the DeltaTrack exceeds the performance and durability of existing track systems, employing the proven Versatile outboard planetary system to maximise power to the ground. Four independent tracks maintain balance and provide constant contact with the ground. The DeltaTrack is built using the most advanced track design in the agriculture industry and features proven Cummins engine technology, rugged CAT® powershift transmissions, and legendary Versatile reliability and serviceability

  • Cummins QSX 15L Large Capacity Engine
  • Tier 3 Diesel Only
  • 16/4 CAT Powershift Transmission
  • Active Leather Seat (Heating/Cooling)

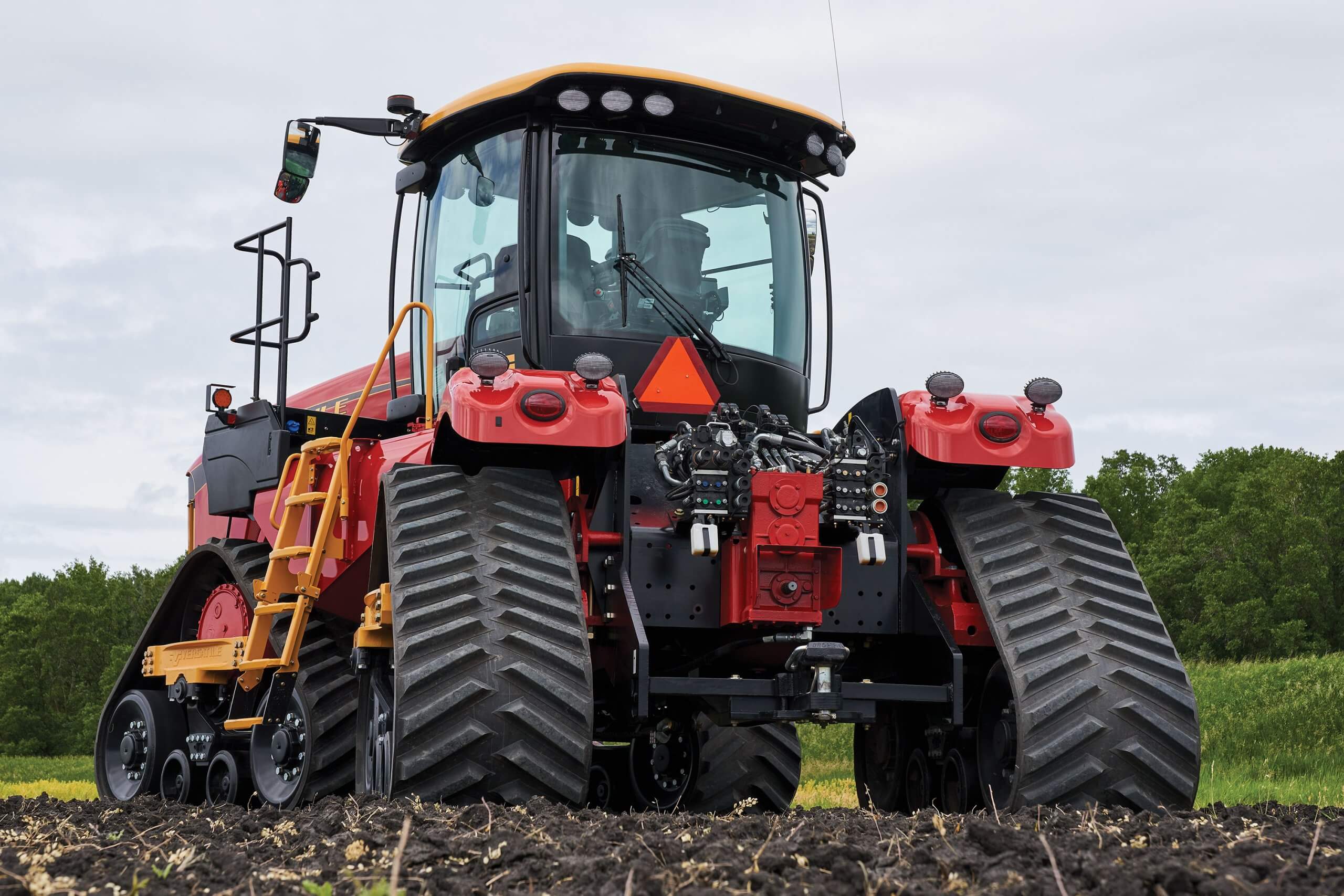

  • Diff Locks & Drawbar Pull
  • 3m Control Traffic Kit Available

The DeltaTrack Track System

Familiarise yourself with our unique positive drive drive track system.

Features

Engine

The DeltaTrack uses a responsive QSX15 Cummins engine. The unmatched engine displacement and Cummins technology help produce excellent torque response and pulling power.

Transmission

The DeltaTrack uses the heavy duty CAT TA22 powershift transmission. 16 forward and four reverse gears shift seamlessly under load to create a more comfortable operating environment. A large selection of working gears is available to match almost any application. The TA22 is fully programmable for autoshift and speed matching. Capable of road speeds up to 35 km/h, the DeltaTrack moves between fields efficiently.

Track System

The DeltaTrack uses a positive drive system to reduced wear, friction and heat. Track slippage is eliminated by interlocking track lugs into the drive wheel. The DeltaTrack keeps 4.6 lugs engaged with the drive wheel at all times to eliminate slippage between the track and drive wheel. The DeltaTrack uses the largest drive lugs (8-1/2") in the industry to maximise operating life.

Cabin

The new Deluxe Cab is a high end, full-featured cab that provides the operator with every imaginable comfort for long working days. A semi-active air-ride suspension seat and the training seat are both standard in this configuration. In addition to the connectivity options available in the standard cab, the Deluxe Cab has an 110v AC power outlet and a 5-volt integrated USB port. A sub-woofer is also standard to improve sound quality in the cab.

Cabin Suspension

The suspended cab on the DeltaTrack combined with the optimisation of the undercarriage provides the best ride in the industry. The suspended cab is raised onto the four point shock and spring system that works in tandem with the tuned torque arms that reduce or eliminate pitch and roll movement. Bringing together Versatile's double-axes bogie system and the suspended cab gives the DeltaTrack a superior system to any track based agricultural tractor on the market.
