Model option:

Twin Bin 2 x 2000L EASYclean

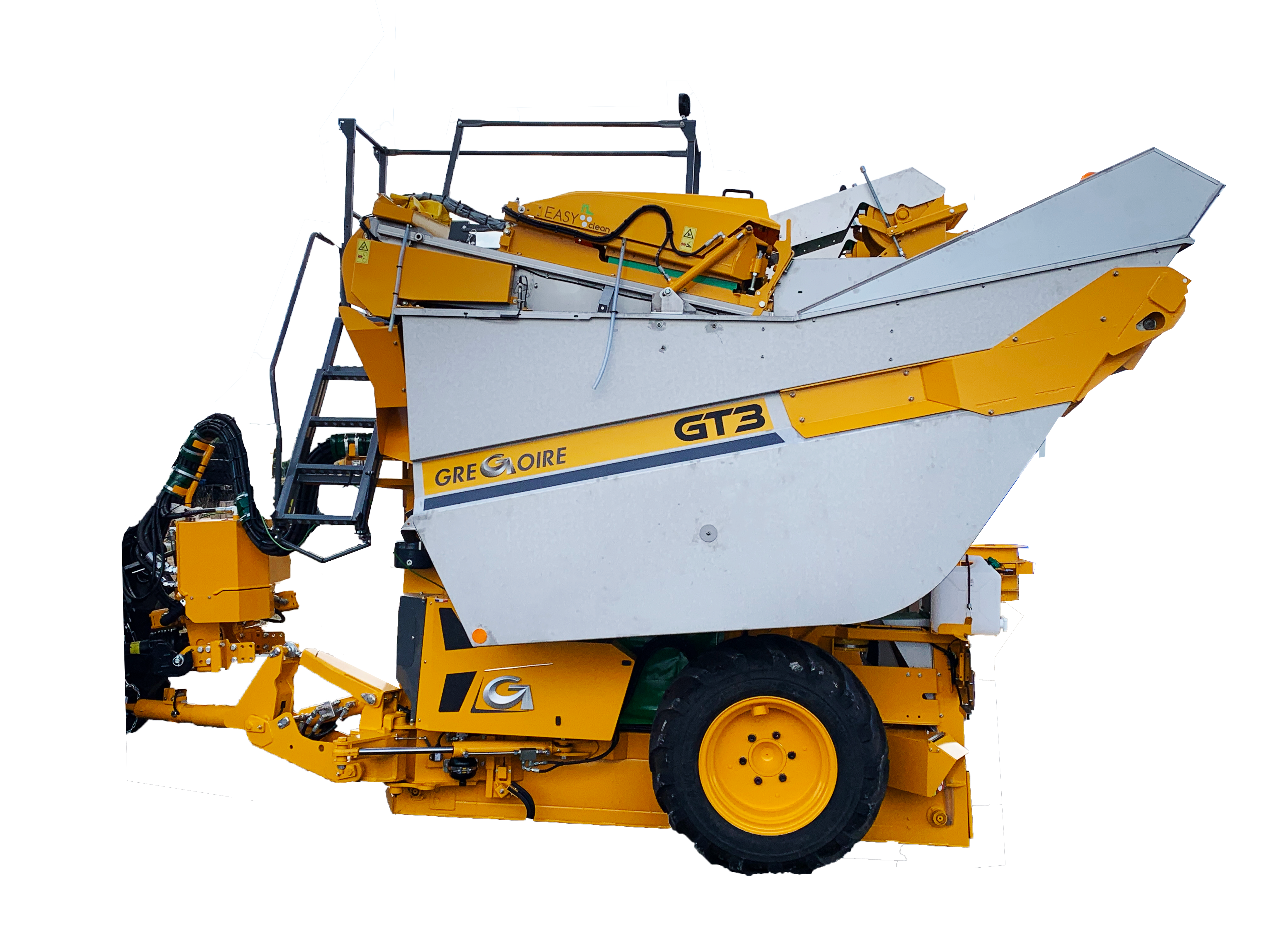

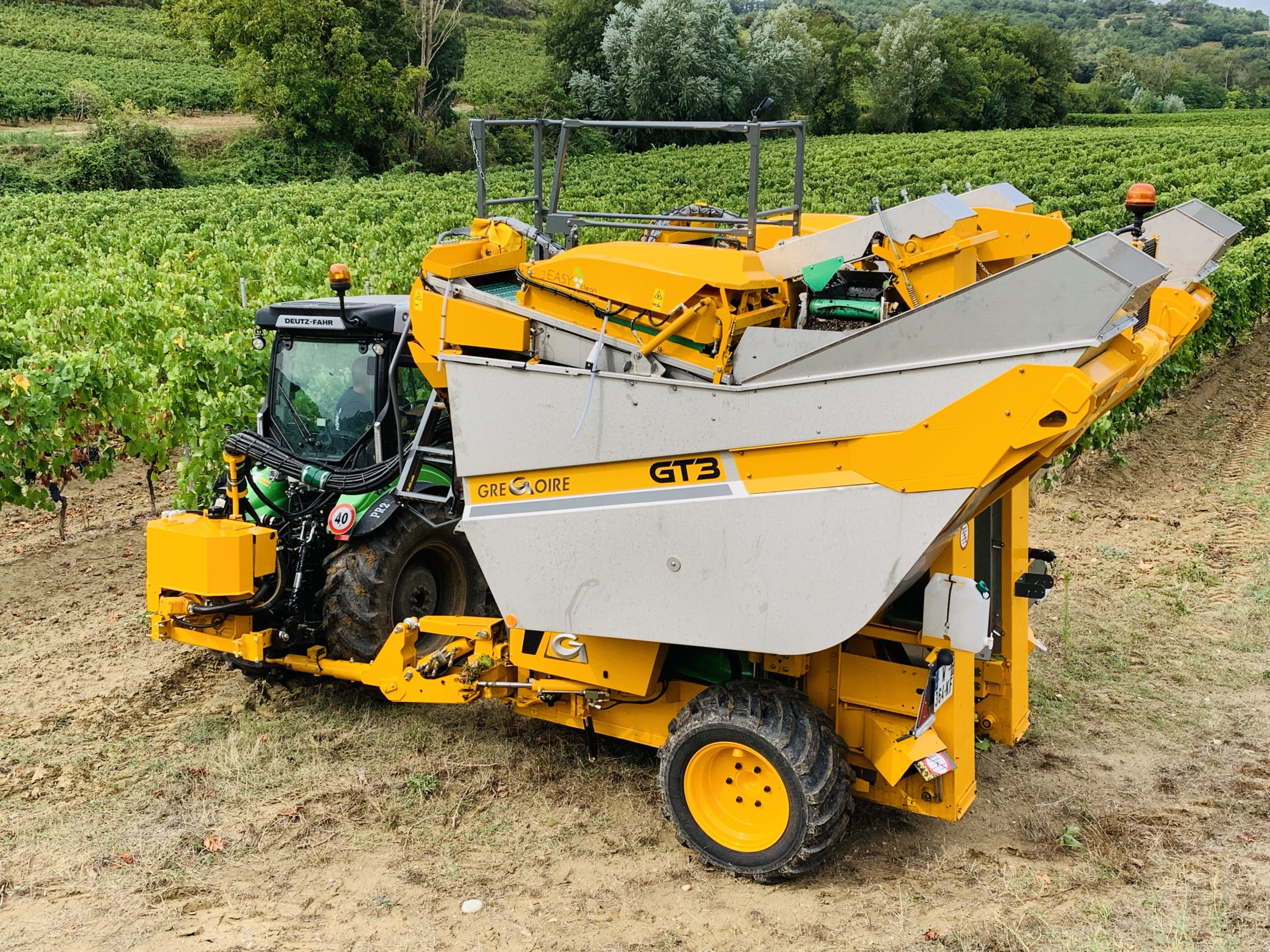

The new GT3 is a technology market leader.

Designed based on a long line of proven grape harvesters recognized for their picking quality. The GT3 is the new high-performance and innovative solution in Gregoire’s product range in tow behind harvesters. It retains the core value of the brand while the use of proven technology to make it operator friendly with low operating costs.

In terms of technical innovation, GT3 is the first ISOBUS towed harvester available on the market reducing the need for an extra screen in the tractor. The GT3 has an impressive 2000 litre bins on each side, meaning it is the largest carrying capacity on the market. Coupled with the newly designed wide-angle drawbar, connected direct to the tractor, boosting manoeuvrability whilst still maintaining stability. This makes it a very appealing option to both growers and contractors.

If you are looking for a harvester, with proven technology, large carrying capacity and low running cost, we have the solution: GT3!

FITTED WITH GREGOIRE’S TRADEMARK EASYCLEAN ONBOARD DE-STEMMING SYSTEM.

  • Minimum row spacing of 1.7 meters
  • Market Leading Bin Capacity
  • Wide Angle, Sensing Draw Bar
  • AUTOlevel and AUTOheight Management
  • MAXIflow Cleaning System for bottom fans
  • First fully ISOBUS optioned Towed Harvester

Features

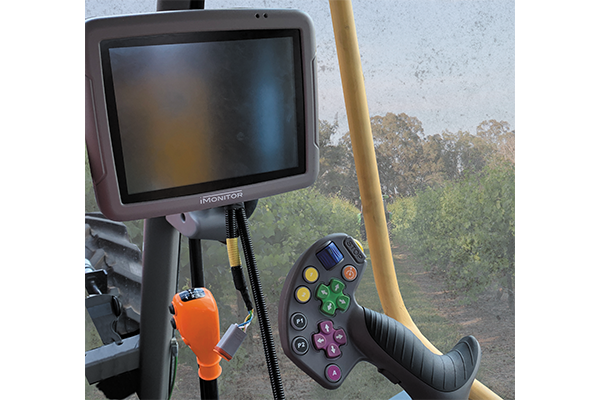

Controls

GT3 is the most ergonomically designed solution in terms of pull type harvesters. All settings, information are gathered at a unique control point for more efficiency. Every tool speed (picking head, fans, belts,…) is adjusted in real time according to settings, giving consistence working speeds and best picking results. Headland sequencing programs, which are fully adjustable and customizable are available, giving ease of row entry and exit. Color camera, inclinometer, bins sensor are also GT3 standard equipment that benefit to picking efficiency.

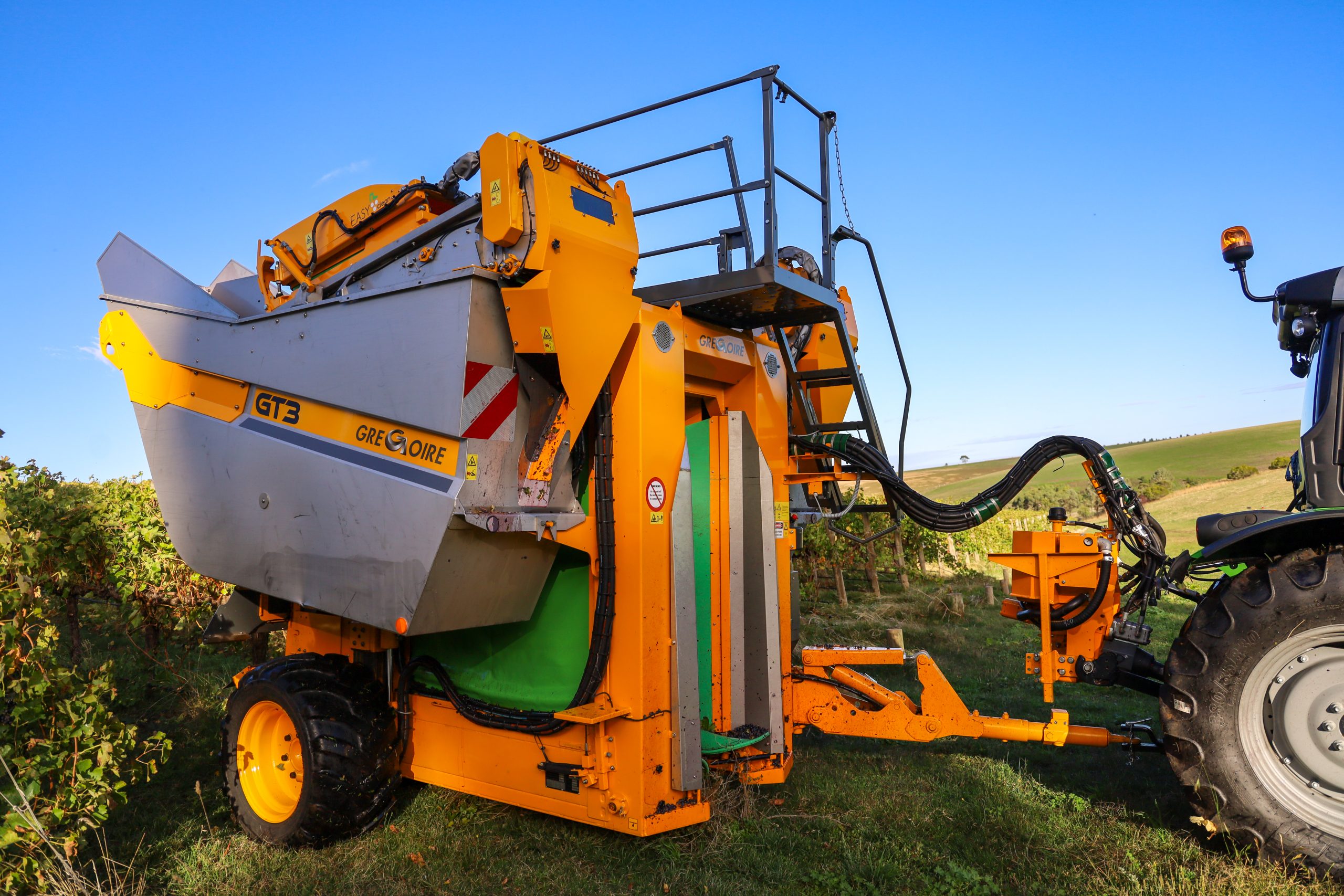

Draw bar

Harvester direct coupling on the tractor draw bar provides the stability and manoeuvrability of the machine in all conditions. With its compact design, it perfectly adapts to all tractors and allows machine guidance and it's height adjustment whilst maintaining stability. The wide-angle drawbar helps manoeuvring even in the shortest headlands. The sensor integrated to the drawbar will automatically manage machine driving assistance based on tractor traction.

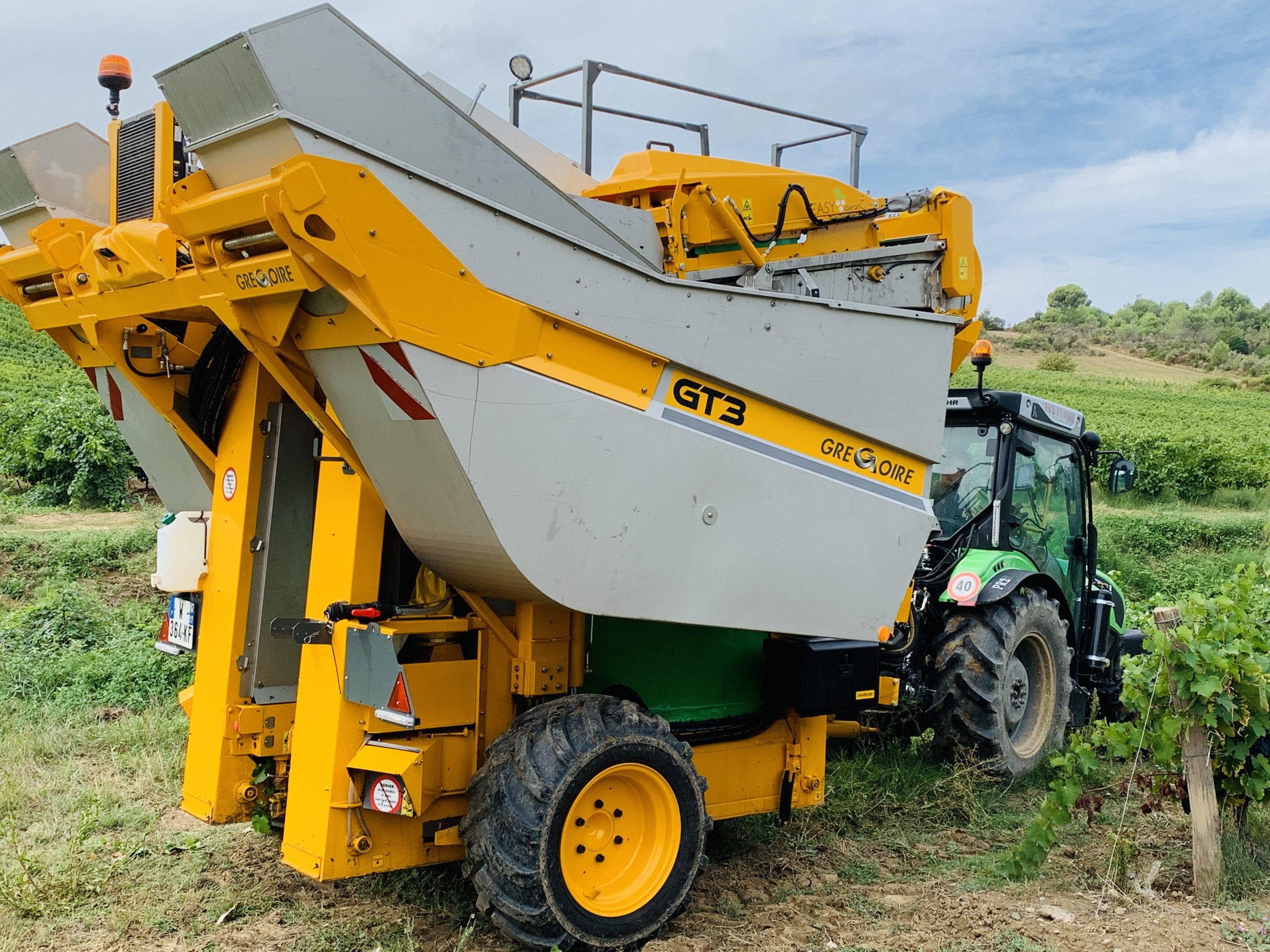

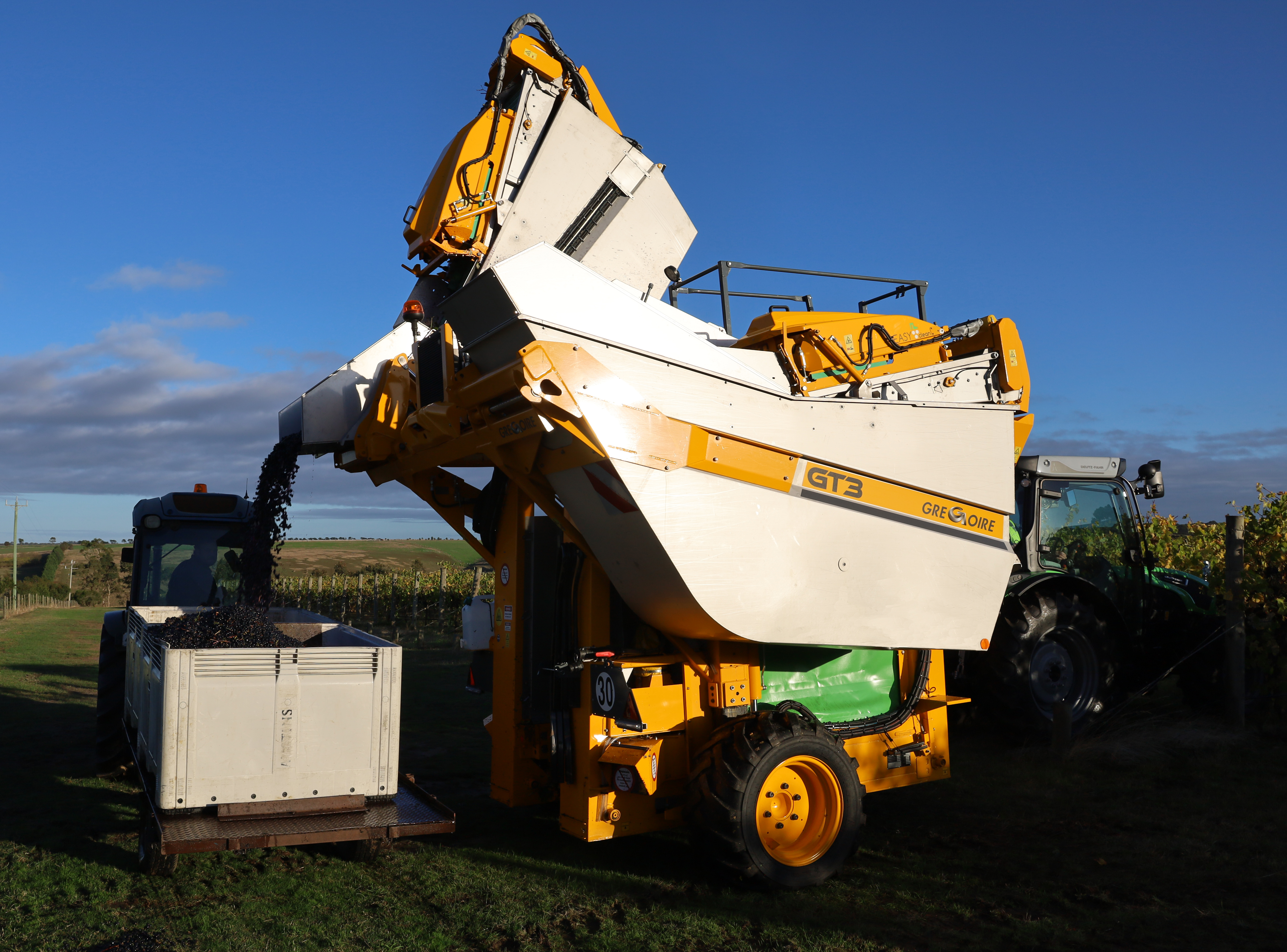

Large Bin Capacity

GT3 lateral stainless steel bins offer the largest storage capacity available on the market, with the onboard carrying capacity is now 4000L. Dumping time is less, and productivity is increased.

Automatic ground drive management

GT3 is equipped with hydraulic wheel drive motors with an option to upgrade to larger motors for the steeper slopes. The new transmission management offers you a unique driving experience. Once transmission activated, the sensor fitted on the drawbar will adjust machine speed according to the tractor traction. Driving assistance needs are supplied by a load sensing pump. An OVERboost mode gives increase drive to cope with most difficult ground conditions. Transmission being fully automatic whatever the situation, allowing the driver to concentrate on the machine settings, and picking optimisation.

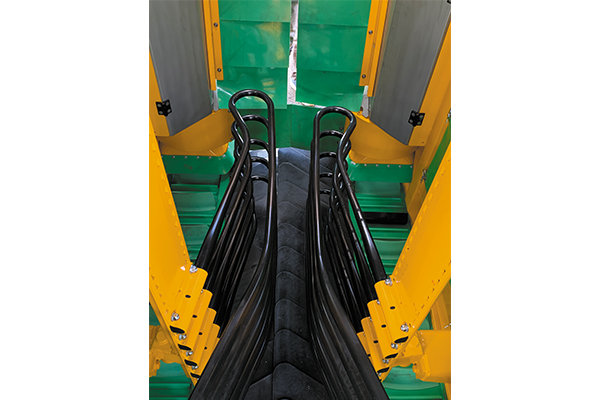

ARC2 picking head

Trellis care, picking quality and innovation have always been associated with the GREGOIRE ARC picking head. The new ARC2 picking head design is based on heritage. ARC2 is setting new GREGOIRE picking standards and compliments the new GT3 perfectly.

AUTOlevel & AUTOheight management

With a 700mm of levelling range, the GT3 can perform in the toughest conditions. A standard feature, AUTOlevel® allows you to correct the slope semi automatically, keeping the machine always level. The GT3 is equipped with an electronic height management. A working height and a dumping height can be programed and are quickly accessible with a simple click on the joystick. Road height is also available directly from the joystick when switching to road mode and thus machine levelling is synchronized. With this system you don’t have to worry about machine height.

Auto Ground Drive

The new transmission management offers you a unique driving experience. Once transmission activated, the sensor fitted on the drawbar will adjust machine speed according to the tractors requirements. This feature allows the driver to concentrate on machine operation, settings to achieve picking optimization The OVERboost mode gives the operator increased drive to cope with the most difficult ground conditions when they arrive.

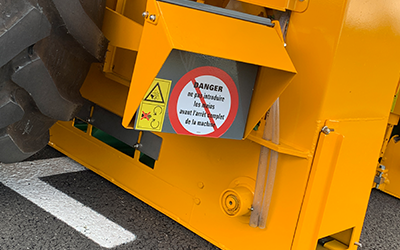

Cleaning and sorting

The GREGOIRE harvest cleaning fan perform cleaning as soon as possible. This removes leaves and MOG (Materials others than grapes) before they get wet and heavy. Juice losses are minimized as bottom fans do not need work high speeds. To optimize the bottom fan efficiency GT3 is equipped with MAXflow system. 2 trapdoors located each side of main conveyor, underneath bottom fans, adjusts air intake to fans for an optimum MOG extraction. Trapdoor position and air intake can be adjusted in seconds depending of harvest conditions.

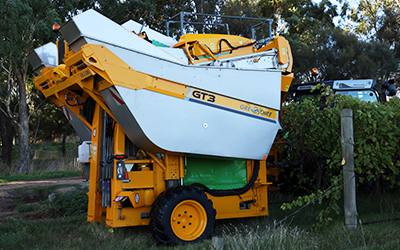

Frame

GT3 frame has been specifically developed to cope with the most demanding situations. Lightness and robustness have been our main focus to design the most streamlined frame possible.

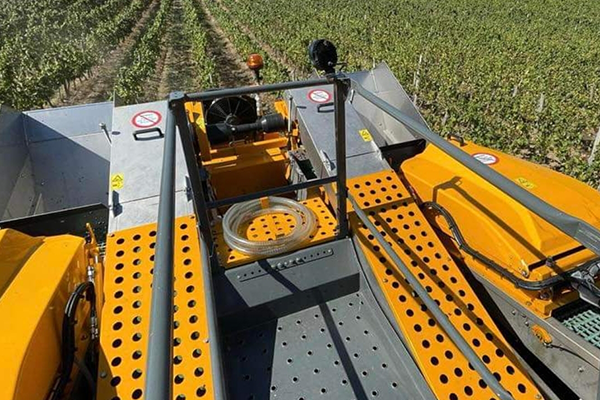

Access and maintenance

Maintenance is an integral part of a typical harvest day. Regular maintenance means an uninterrupted harvest; from the very beginning GT3 has been designed to make every cleaning and maintenance operation easy.

Specifications

Plantations / Vineyards

Minimum row spacing: 1.70m

Linkage

Draw bar with direct connection to the tractor

3 point linkage hydraulic power pack

Transmission

Hydraulic wheel drive: 820 cm3 motors (1260 cm3 option)

Transmission OVER boost

Slope correction: 700 mm/28%

Hydraulic

Oil tank capacity: 70 L

No hydraulic requirements from tractor needed

Automatic guidance on the row via feelers

Driving / Controls

Multifunction joystick with backlighting and arm rest

Automatic leveling

Automatic height management

Automatic ground drive management

Colour Touch Screen – 8.4’ i-monitor

Option: ISOBUS connection for ISO ready tractors (screen + joystick not included)

Visibility

LED lighting

Flashing light automatic activation in road mode

Flashing light automatic activation when bins are full

Camera: 2

Option: 2 additional cameras + screen for EASYclean

Harvesting head

Full harvester control and setting from driver cab

14 ARC² picking rods with fast fixing FASTfit

Catcher tray length 2200 mm

Minimum harvesting height - than 15 cm

Tunnel width 650 mm

MOG extraction

2 bottom fans

MAXflow adjustable air intake

Vertical extractors

EASYclean

Bin

Stainless Steel Bins: 4000L (2 x 2000L)

Bin level sensor

Emptying height: 3 m

Access, cleaning and maintenance

Large Top Platform

Centralized greasing

Tool Box + Picking Rod Storage

External control box in wash mode

Intergrated washing line to top platform

Option: Automatic Grease system
