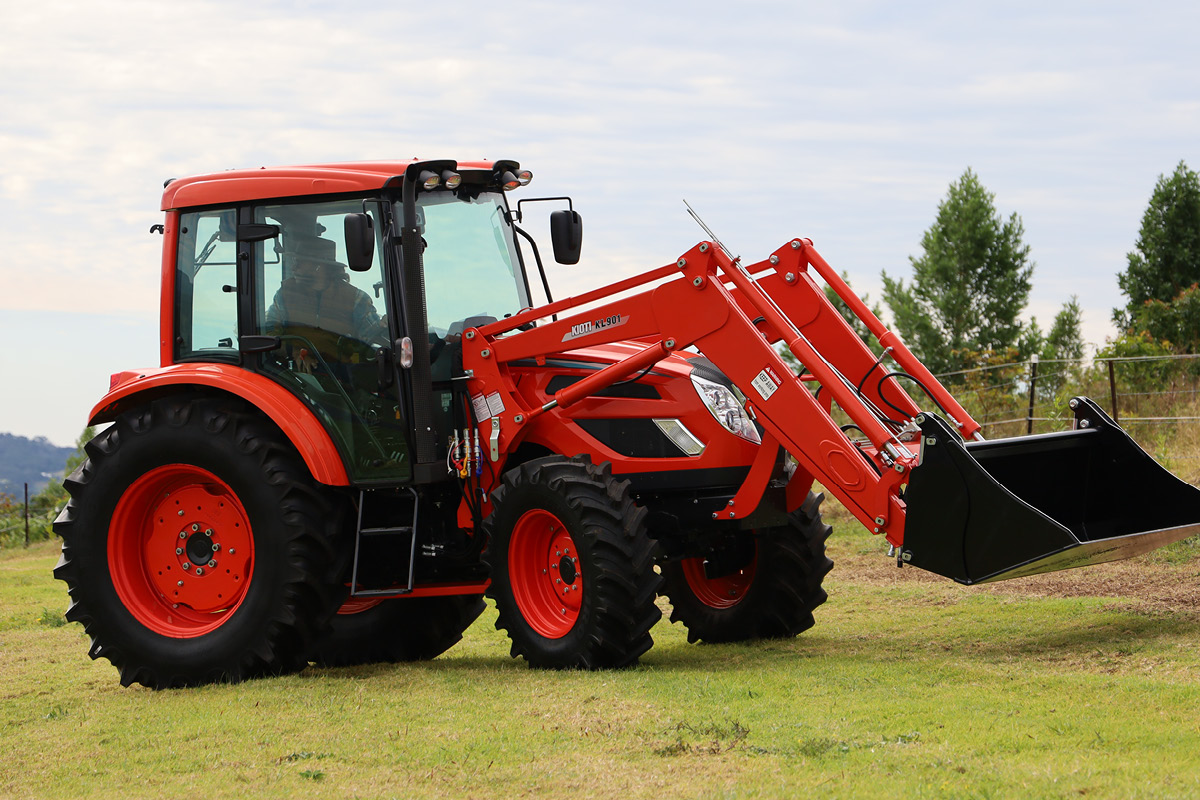

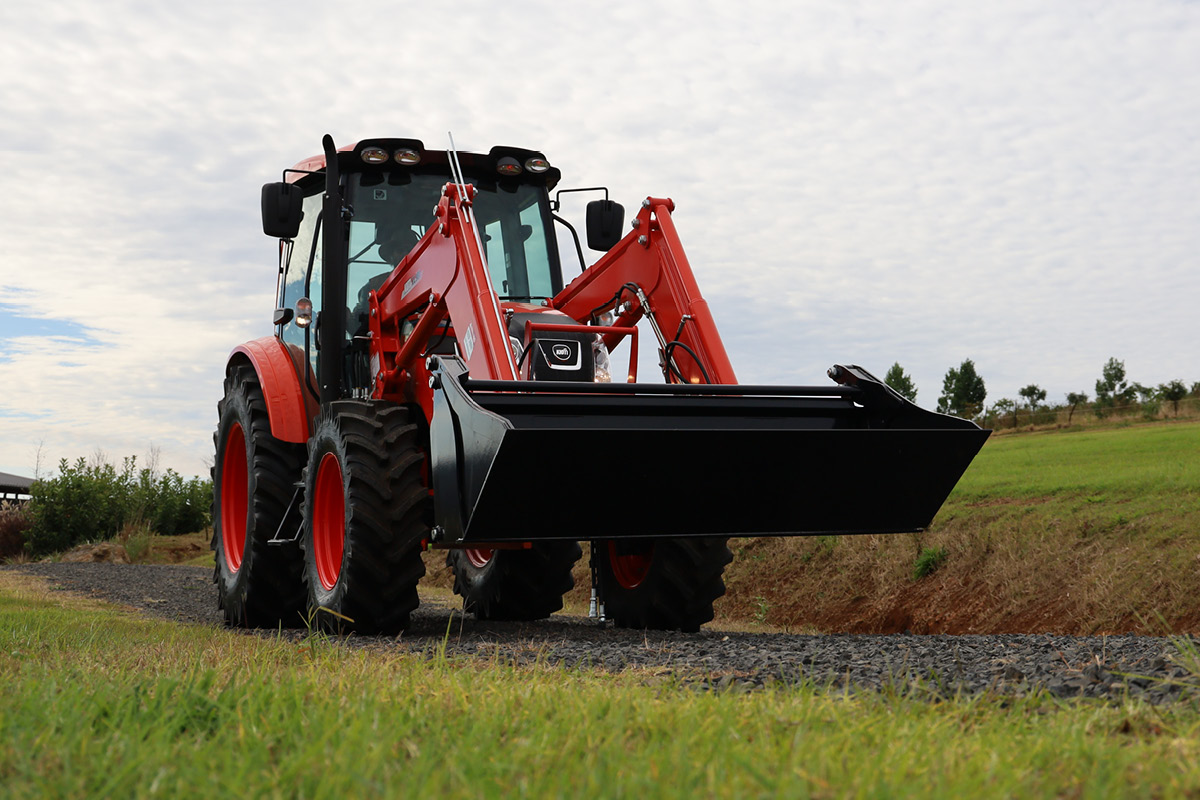

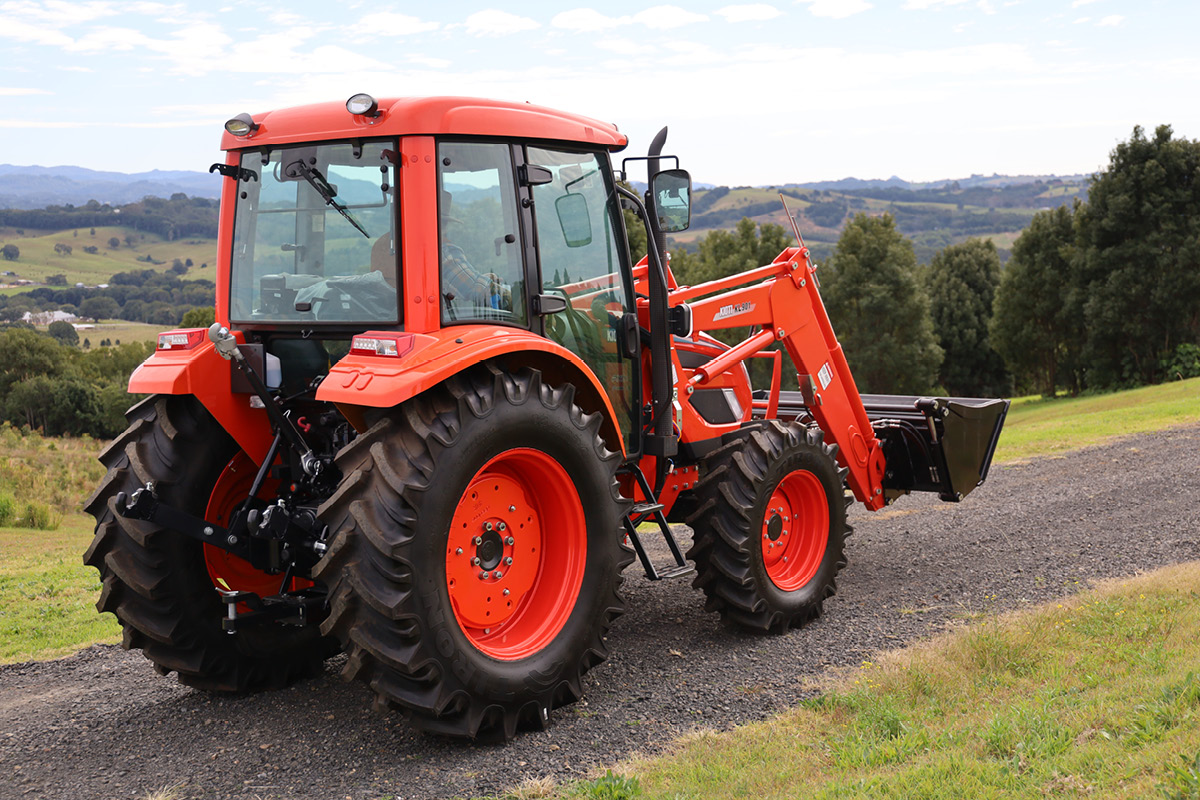

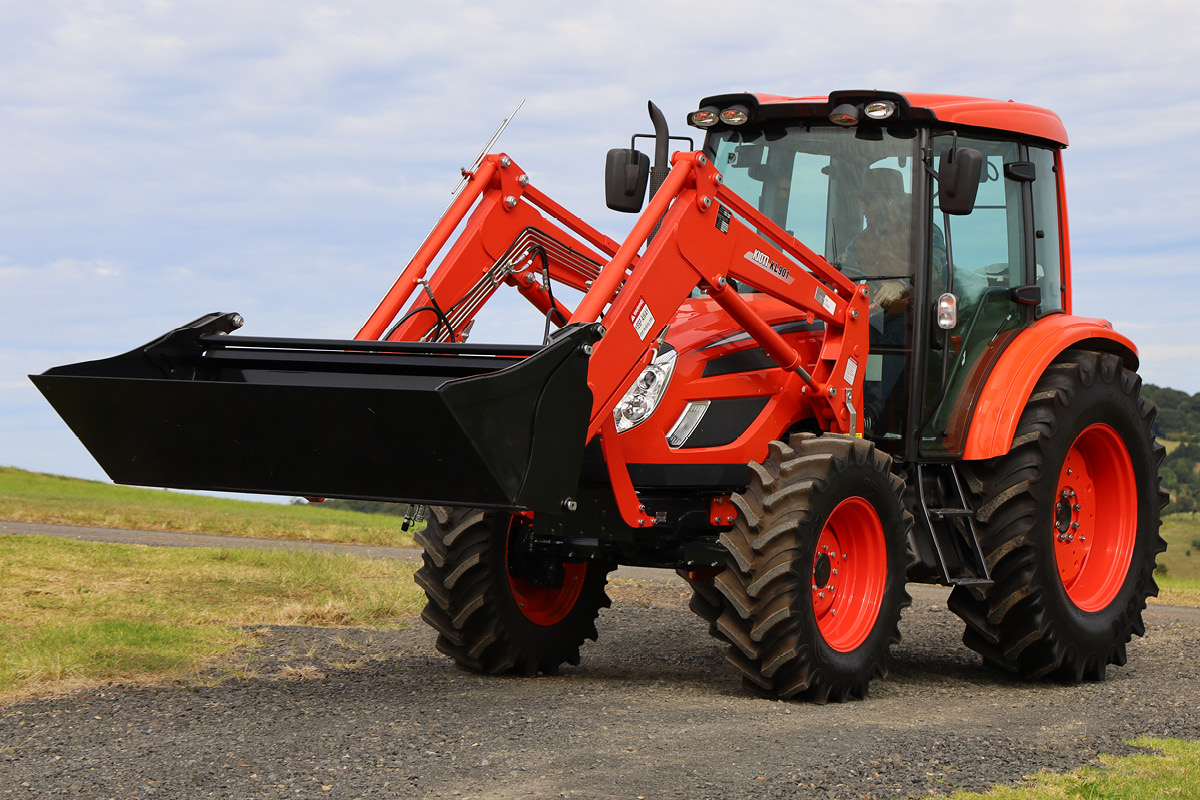

The innovative and highly regarded PX range with a weight of 4 tonnes is designed for serious farming and is the ideal tractor for front end loader work. With a large 120 litre fuel tank and a fuel efficient engine, the PX can keep on working for a long time between fuel breaks. Equipped with hydrostatic power steering, the PX provides smooth responsive steering that requires minimal operator effort and is ideal for loader work.

*Price excludes freight and pre delivery. Offer valid while stocks last.


  • 105 hp Diesel Engine
  • Power Forward / Reverse Shuttle
  • 32 x 32 Transmission
  • Push Button Hi / Low Powershift
  • European Designed Wet Clutch
  • 4WD with Diff Lock
  • Power Steering
  • Auto Hydraulic Independent PTO



Powerful and environmentally friendly 105 hp Perkins diesel engines offer high output, low noise, low vibration and lower fuel consumption compared to some of the competitors.


The Powershuttle on the PX1052 provides smooth and easy shifting from forward to reverse without depressing the clutch pedal. The transmission features 32 forward and 32 reverse gears to handle all kinds of jobs. Levers and buttons are colour coordinated for better distinction and safety.

Hi-Low Range

The Hi-Low ranges and gears can be changed by simply pushing the HI/LOW buttons and clutch button on the main gear lever without depressing the clutch pedal.

Operator Station

Luxury cabin with logically arranged dash instruments and easy access to controls and buttons. Air conditioning, heating and ventilation provides superior comfort for the operator in tough and ever-changing Australian conditions.


The two speed PTO 540/1000 with auto stop function is standard on all PX models.

Deluxe Seat

The cleverly designed cabin features a fully adjustable suspension seat with armrests and retractable seat belt.

3-Point Linkage

Category II 3-point linkage with a maximum lift capacity of 2400kg.



Perkins 1104C-44TTG

Liquid Cooled 4 Cylinder Diesel

4399cc Displacement

105 hp @ 2400rpm (max)

120 Litre Fuel Tank Capacity

Dual Air Cleaner


Synchro Mesh

Power Shuttle

Push Button Hand Clutch

Wet Multi Disc Clutch

32F x 32R Speed with Hydraulic High/Low

Rear Differential Lock

Hydraulics & Linkage

Main Pump Capacity - 48.4 l/pm

Steering Pump Capacity - 30.8 l/pm

Total Maximum Flow - 79.2 l/pm

2400kgs Maximum Rear Linkage Lift Capacity

Power Steering

Category II Three Point Linkage

Position, Draft, Mixed Control Lift System

4 Rear Remote Outlets

Clevis Type Rear Draw Bar


Independent 540/1000 PTO

Auto PTO


Wet Disc Type

Operator Environment

Deluxe Cabin with A/C and Heating


Adjustable Steering Wheel and Instruments

High Quality Fully Adjustable Seat with Arm Rests & Backrest

Flat Operator Deck

Front and Rear Wipers

Internal/External Air Exchanger Filters

Refrigerator/Heating Cabinet

Travel Speeds

Forward 0.82-38.36 kph Reverse 0.80-37.33 kph


Overall Length incl. 3PL 4120mm

Overall Width Minimum Tread 2000mm

Overall Height 2770mm

Wheelbase 2305mm

Ground Clearance 495mm

Weight Cabin/AG 3630kgs


Radial Tyre Front 340-85R24 Rear 460-85R34

PX Series Brochure

Click to view the PX Series brochure

View Brochure
