The dynamic and acclaimed PX range with a weight of 4 tonne is designed for serious farming and the ideal tractor for front end loader work. With a generous 120 litre fuel tank and a fuel efficient engine, the PX can keep on working for a long time between fuel breaks. Equipped with hydrostatic power steering, the PX provides smooth responsive steering that requires minimal operator effort .

  • 95 hp Diesel Engine
  • Forward / Reverse Shuttle
  • 16 x 16 Transmission
  • 4WD with Diff Lock
  • Power Steering
  • Auto Hydraulic Independent PTO



The powerful and environmentally friendly 95 hp Perkins diesel engines offer high output, low noise, low vibration and lower fuel consumption.

Operator Station

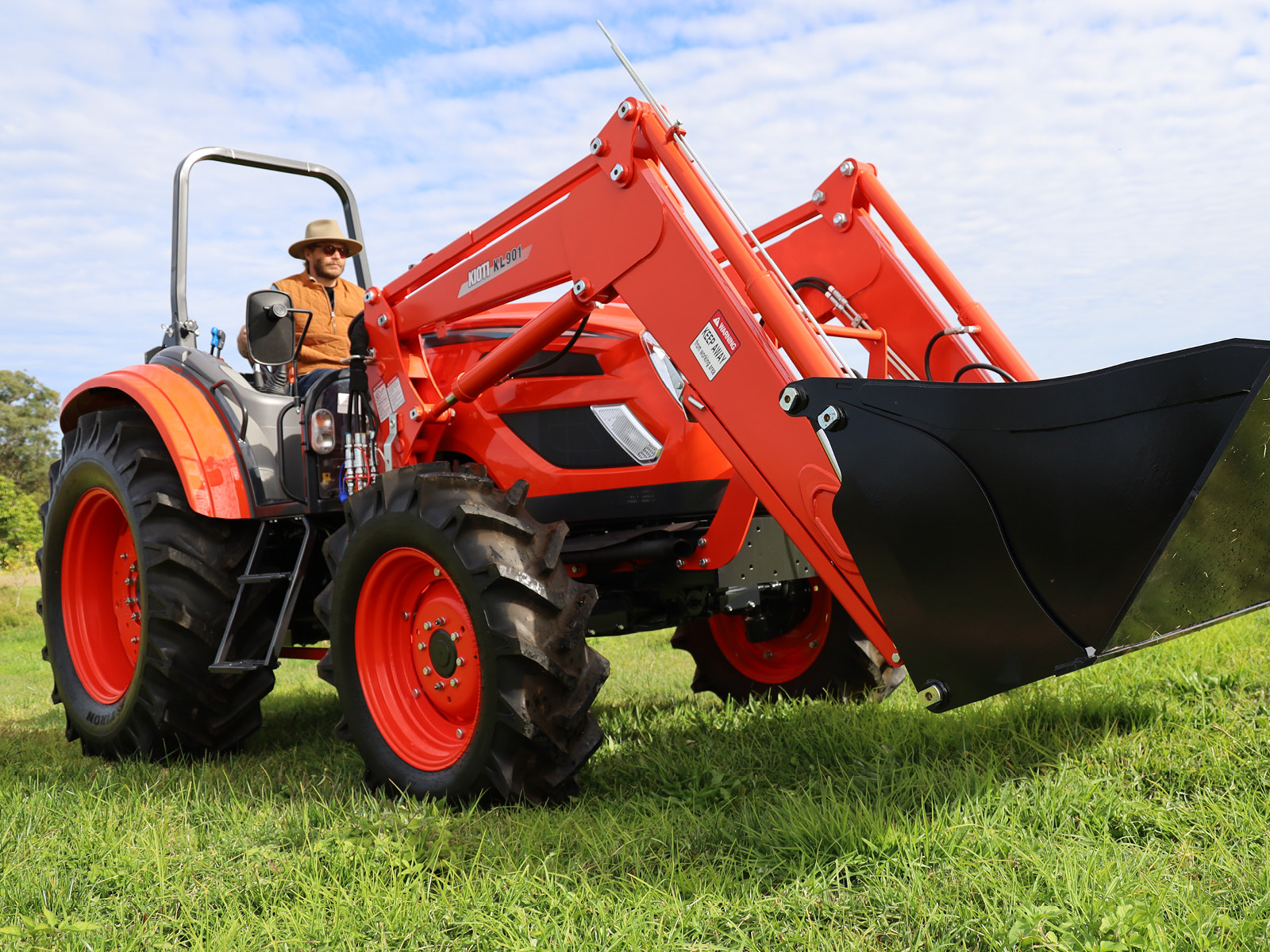

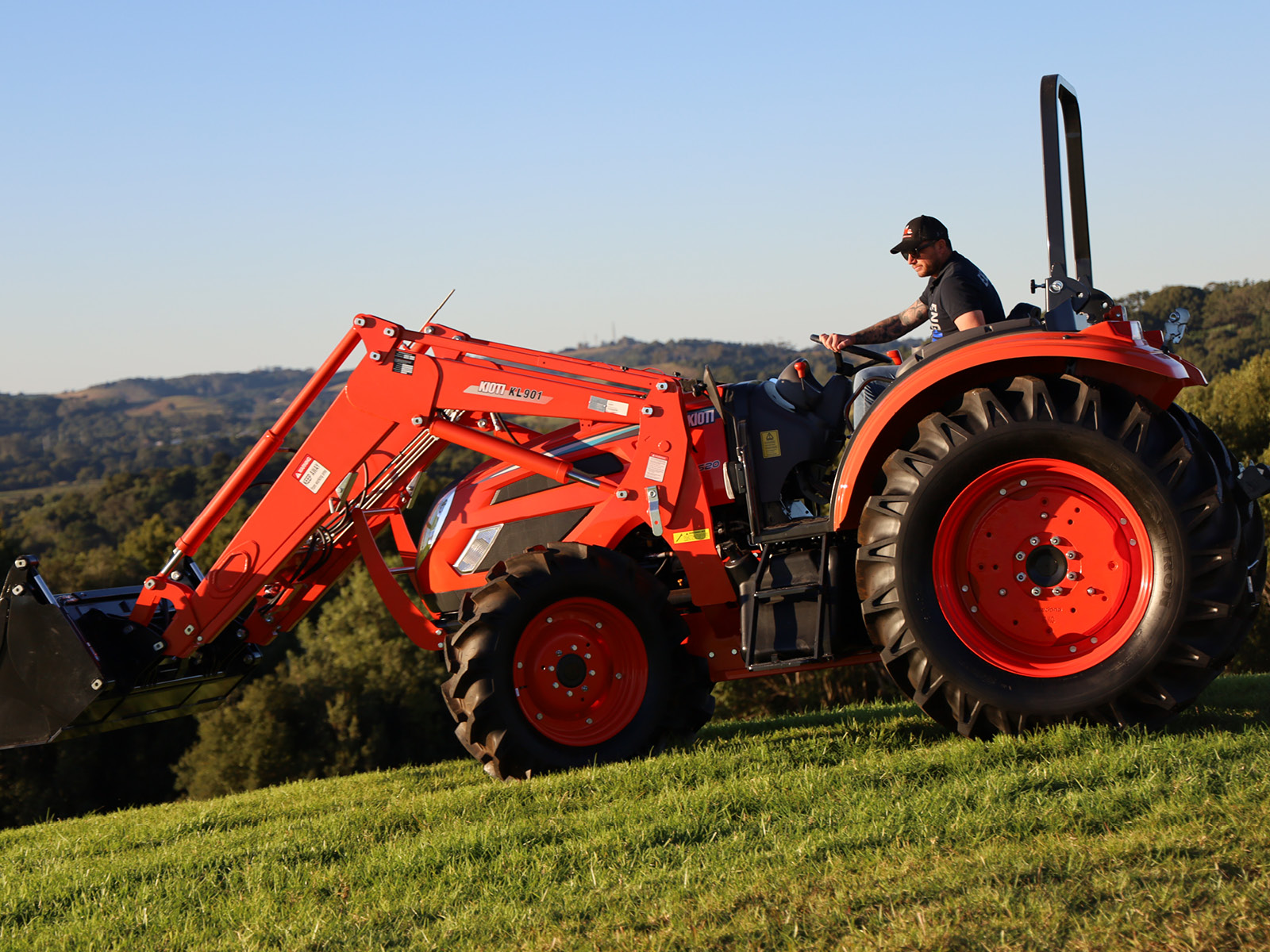

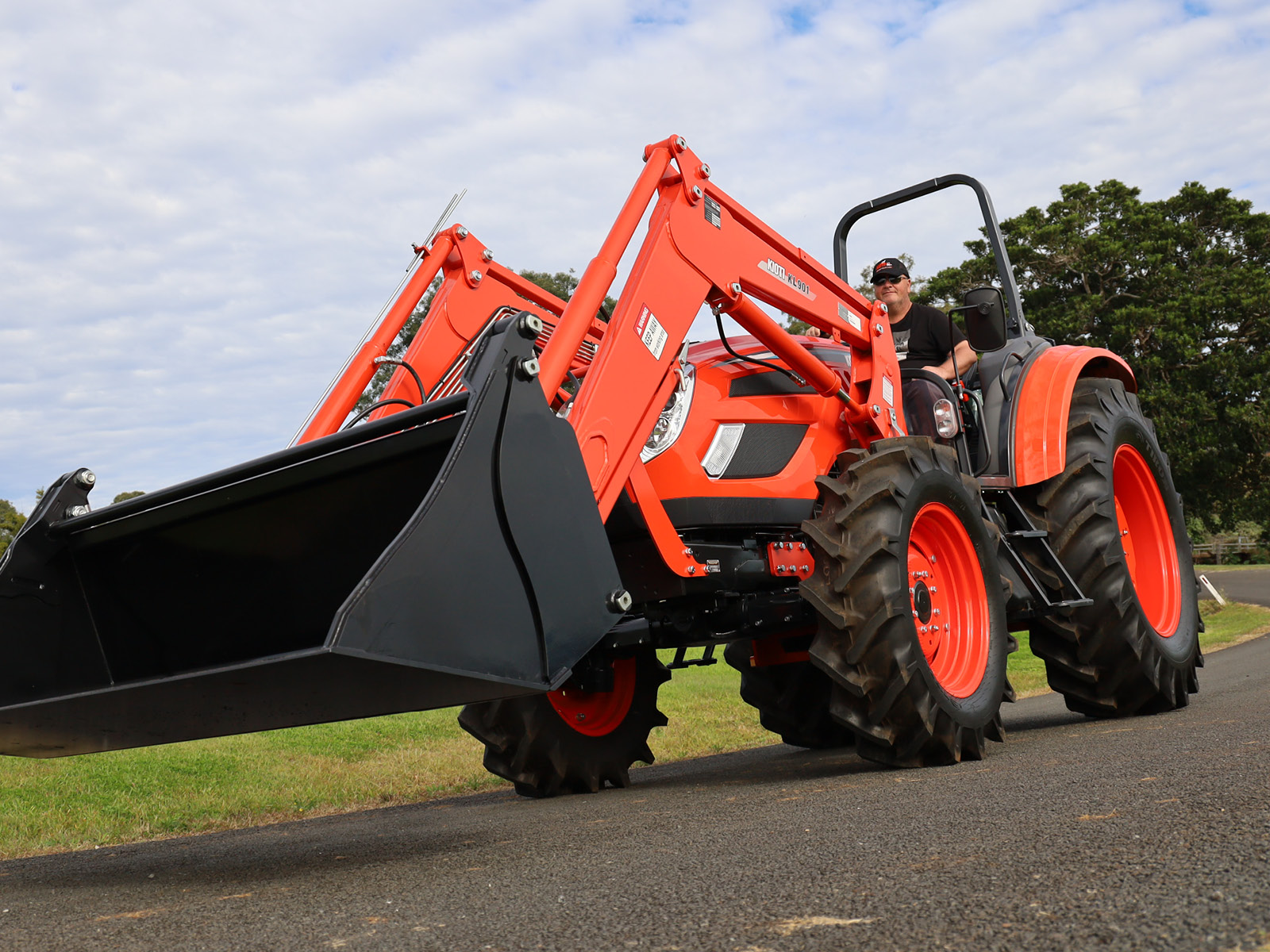

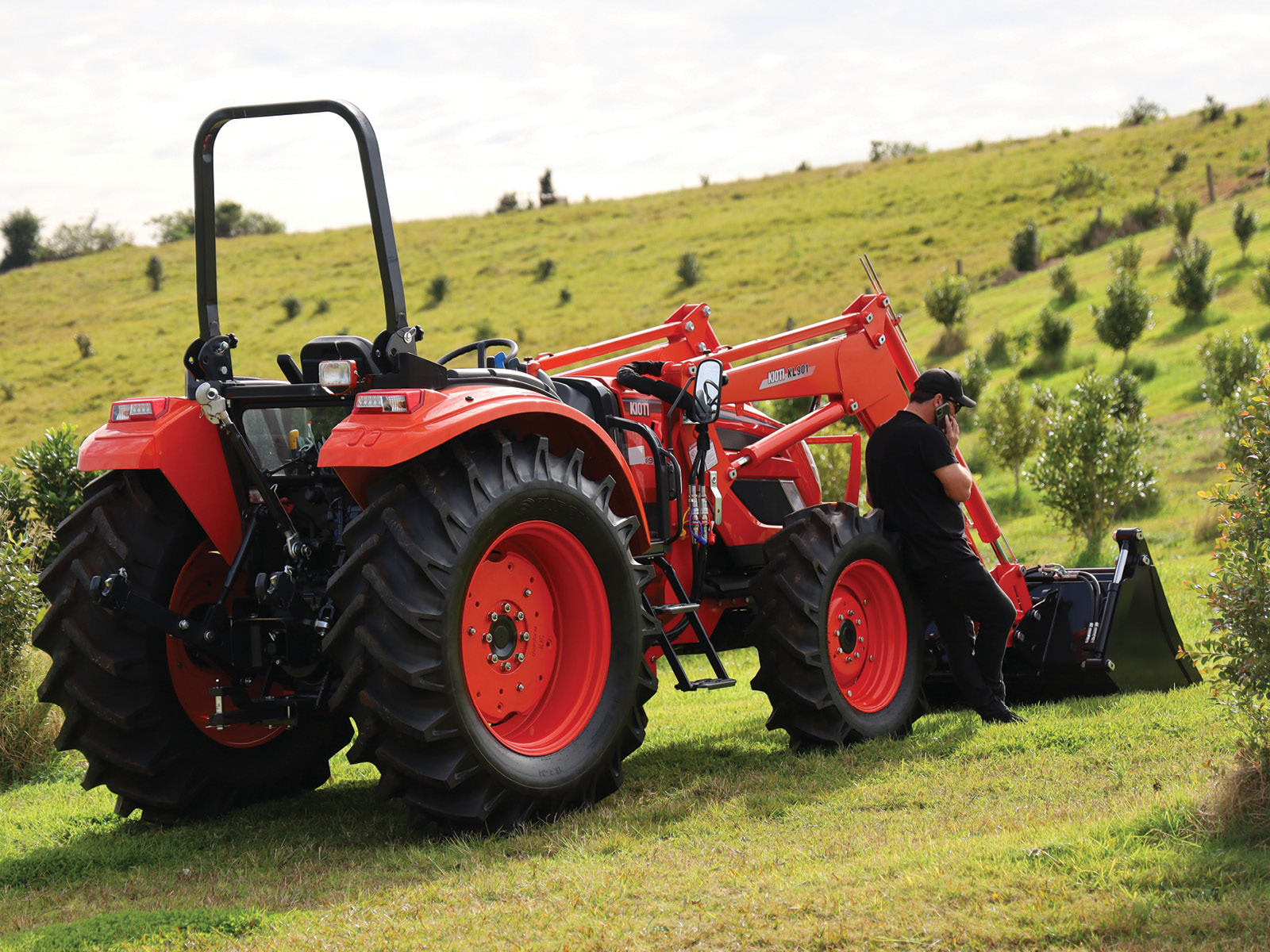

The PX9520 ROPS tractor features a wide step-through deck, grab handles, fully featured instrument panel, adjustable seat, tilt steering wheel and power steering.


Standard dual remote hydraulic valves accommodate a wide variety of attachments and implements. A mid-mount double acting valve and a single lever joystick for loader operations are standard on the PX series. The PX9520 has a lift capacity of 2,400 kg.

Fuel Tank

The 120 litre fuel tank allows for plenty of productive working hours without the need for frequent refuelling.


The high impact flat polymer operator platform reduces vibration and is easy to clean. There is plenty of room to enter and exit the tractor without any obstructions.

Ergonomic Layout

Controls are logically arranged and designed for operator comfort and user-friendly operation.



Perkins 1104C-44TTG

Liquid Cooled 4 Cylinder Diesel

4399cc Displacement

95hp @ 2200rpm

120 Litre Fuel Tank Capacity


Synchro Mesh

Synchro Forward and Reverse Shuttle

16F X 16R

Differential Lock

4 Wheel Drive

Hydraulics & Linkage

Implement Pump 48.4 l/pm

Powering Steering Pump 30.8 l/pm

Total Hydraulic Flow 79.2 l/pm

Category II Three Point Linkage

Hook Type 3PL

2400kgs Maximum Rear Lift Capacity

Power Steering

Clevis Type Rear Draw Bar


540 / 1000 rpm

Auto PTO


Wet Disc Type

Operator Environment

High Quality Fully Adjustable Seat with Armrest & Backrest

Adjustable Steering Wheel and Instruments

Flat Operator Deck


Overall Length incl. 3PL 4120mm

Overall Width Minimum Tread 2000mm

Overall Height 2950mm

Wheelbase 2305mm

Ground Clearance 475mm

Weight / AG 3500kgs

Travel Speeds

Forward 0.82 - 38.36 kp/h

Reverse 0.80 - 37.33 kp/h


AG Tyres - Front 12.4 - 24 8PR Rear 18.4 - 34.8PR

PX Series Brochure

Click to view the PX Series brochure.

View Brochure

Customer Reviews

Steve – Koyuga, Victoria (PX Series)

For dairy farmers Steve and Deb Purvis, owning one Kioti tractor was great but having two is even better. In Koyuga, near Echuca, the couple work a 180-head dairy farm on 300 acres. Their cropping work is contracted out and they grow their own fodder under full irrigation. They bought a second-hand 80hp Kioti and Steve enjoyed using it, so the choice was clear when they decided to buy another tractor.

“The air-conditioned cabin is quiet and comfortable with plenty of room. Visibility is great. The tractor is smooth to operate and easy and efficient to use”
View Full Review

PX Series

For Gavin Phillips, a market gardener from Maiden Gully (near Bendigo), the fourth tractor in his fleet was the first he purchased as new and his first Kioti. While the main job for his PX1052 is to transport produce – lettuce, cauliflower, salad onions, cabbages and turnips – from field to shed, Gavin reckons the PX can do pretty much anything.

“Kioti's PX tractor is a great performer and has given us outstanding gains in efficiency.” Gavin from Bendigo, Victoria
View Full Review
