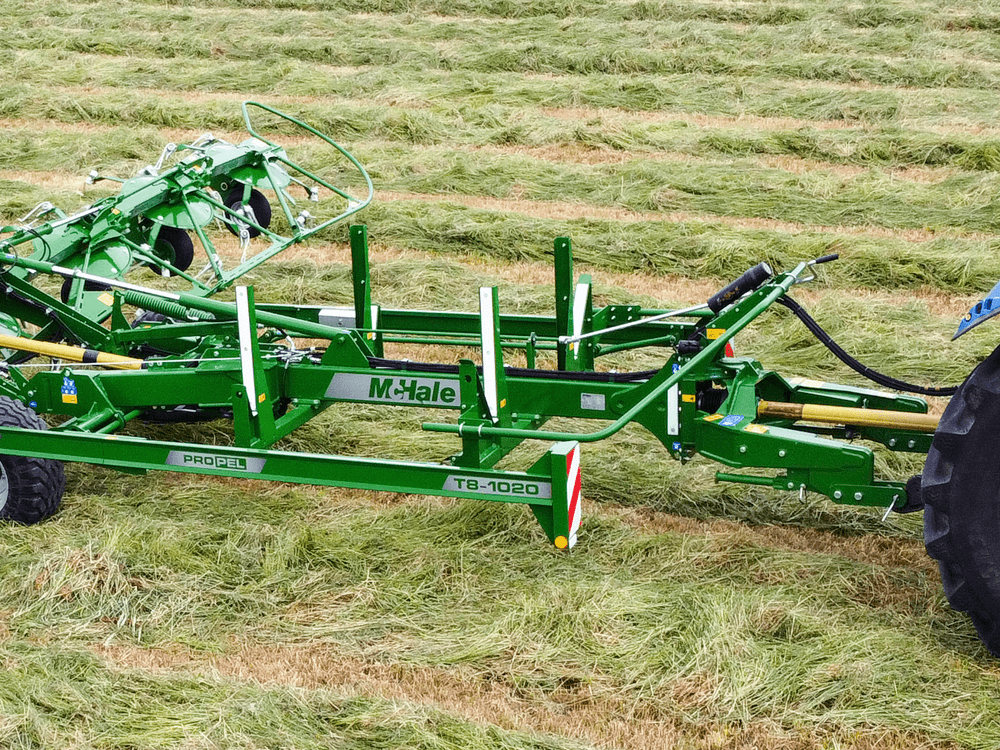

The McHale PROPEL T8-1020 is a high-capacity trailed tedder fitted with eight rotors to provide a working width of 10.2 m. This straightforward, highly efficient machine is equipped with a long carriage frame that connects the tedder to the tractor during operation and serves as a carrier during transit.
The machine is attached using a two-point linkage and can be easily unfolded, lifted, and lowered using only two double-acting spools. Wide transport tires in front of the rotors allow the rotors to float freely, providing superior flotation and helping to prevent soil contamination.
- Working width: 10.2m
- No. of Rotors: 8
- Rotor diameter: 1.58m
- Tine arms per rotor: 7
- Power requirement: 45kW (60HP)
- Attachment: Lower Linkage(CAT II)
McHale PROPEL T8-1020 - Trailed Tedder
The McHale PROPEL T8-1020 is a high capacity trailed tedder fitted with 8-rotors to provide a working width of 10.2M. This straight-forward, highly efficient, machine is fitted with a long carriage frame that connects the tedder to the tractor when in operation and serves as a carrier when in transit. The machine is attached using a 2-point linkage and can be easily unfolded, lifted and lowered using only two double acting spools. Wide transport tires in front of the rotors allow the rotors to float freely, providing superior floation and help prevent soil contamination.
Specifications
WEIGHTS & DIMENSION
Transport Length: 5.8m
Transport Width: 2.99m
Transport Height: 2.6m
Weight: 2,605kg
Tractor Attachment
Minimum Power Requirement: 45 kW (60 HP)
Attachment: Trailed/ CAT II lower linkage
Recommended PTO Speed: 480 rpm (SAE 6 spline PTO shaft)
Lighting: 12 V / 7-pin socket
Hydraulic Systems: 1x SA, 2x DA hydraulic supply (1 with float)
Minimum Flow Rate: 20 l/min (4.54 gal/min) @ 180 bar (2,610 psi)
Machine Specifications
Number of Rotors: 8
Rotor Diameter (including tines): 1.58m
Working Width: 10.2m
Number of Tine Arms: 7 (per rotor)
Chassis Tyres (380/55-17): 2
Rotor Tyres (170/60-8): 8 (1 per rotor)
Optional Equipment
Spare Rotor Wheel: Optional
Headland Management System: Optional
ProPel T8-1020 Tedder
