With the reference sensor the weighing system of the RO-EDW will correct automatically on slopes and on uneven ground for high accuracy on rough terrain and in hilly conditions. Speed related spreading, with auto calibration, will help to prevent over and under dosing. For even more fertiliser savings and increased comfort, it is possible to use the spreader in combination with GPS, the RO-EDW spreader has as standard Basic Section Control of 4m sections. With automatic start/stop on headlands based on the GEOPOINT it is possible to do variable rate spreading according to application maps. This RO-EDW spreader is ISOBUS compatible and AEF certified. You can operate the spreader in combination with the IsoMatch Tellus PRO, IsoMatch Tellus GO+ or any other ISOBUS compatible tractor terminal.
- RotaFlow system - smooth acceleration of fertiliser
- Highly accurate weighing system and reference sensor
- FlowPilot for quick and easy adjustment
- Optimal spreading along borders
- ISOBUS compatible and AEF certified
- 16 smaller sections via Basic Section Control
Features
RotaFlow Principle
No impact, no fragmentation, no dust: Central release point, smooth acceleration and centrifugal force accelerates fertiliser up to disc speed before it reaches the vane.
Accurate spreading pattern
A double overlap spreading pattern gives unrivalled accuracy. The 8 vanes per discs are ensuring a continuous flow of fertiliser to the field. This is important for high capacity spreading and forward speed.
Guaranteed accuracy on slopes
The fertiliser always contacts the vanes at the same point, also on slopes and travels the complete length of the vane.
Consistent spreading pattern
Consistent spreading pattern: Eight vanes per disc, eight sectors per revolution give an equal distribution. Double overlap spreading pattern.

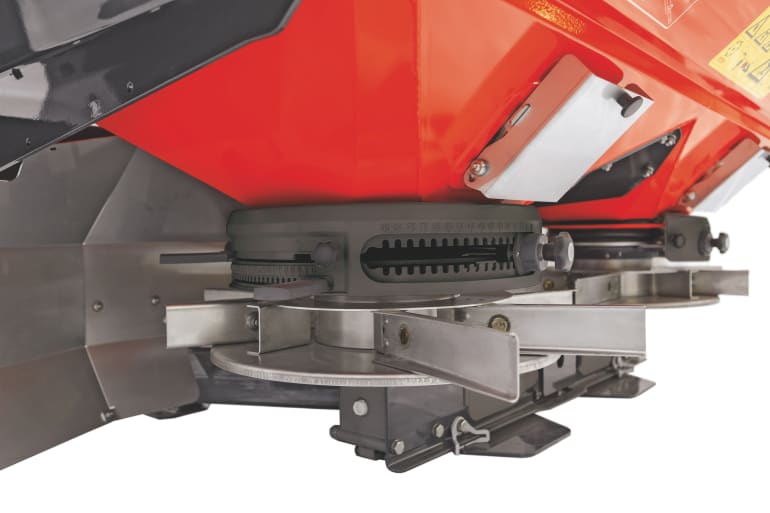

FlowPilot
The compact FlowPilot 'dashboard' gives you considerably simplified accurate setting and adjustment of application rates. Two hydraulically operated metering plates, each with three discharge openings ensure an equal fertiliser flow from the hopper to the spreading discs.

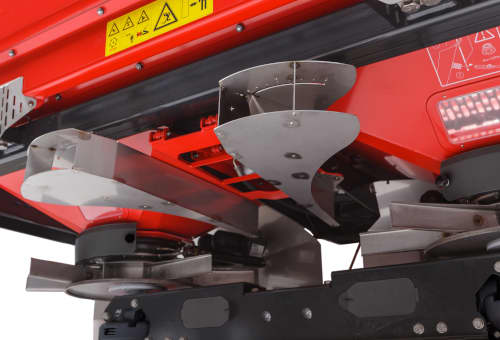

Border Spreading
Vicon offers the TrimFlow system or manual/hydraulic border spreading plate for border spreading. The TrimFlow can be accurately set for all types of fertiliser and for all working widths. Operation is easy, no need to leave the tractor seat. For the RO-M GEOSPREAD, RO-XL, RO-EDW and RO-XXL GEOSPREAD (iDC) models the TrimFlow can even be fitted on the left- and right-hand side of the spreader.

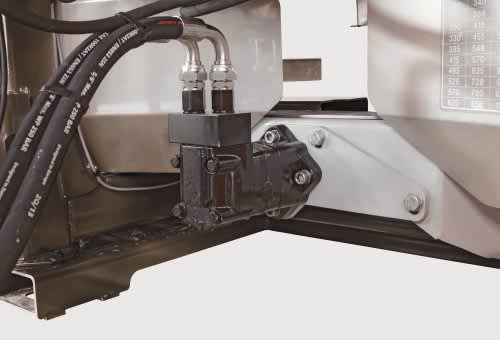

Hydraulic Drive
A Central Hydraulic Drive is as option available for spreading without PTO shaft, for the RO-XL, RO-EDW and RO-EDW/RO-XXL GEOSPREAD.

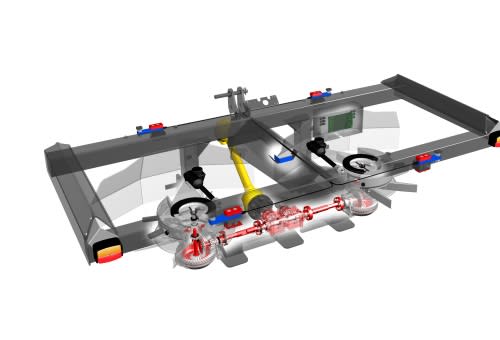

Weighing system
Load cells in combination with the unique reference sensor: - Auto calibrating and continuous weighing system - Automatic correction on slopes - Automatic correction of shocks, even on rough terrain - Automatic speed related dosing system - No calibration test needed
Specifications

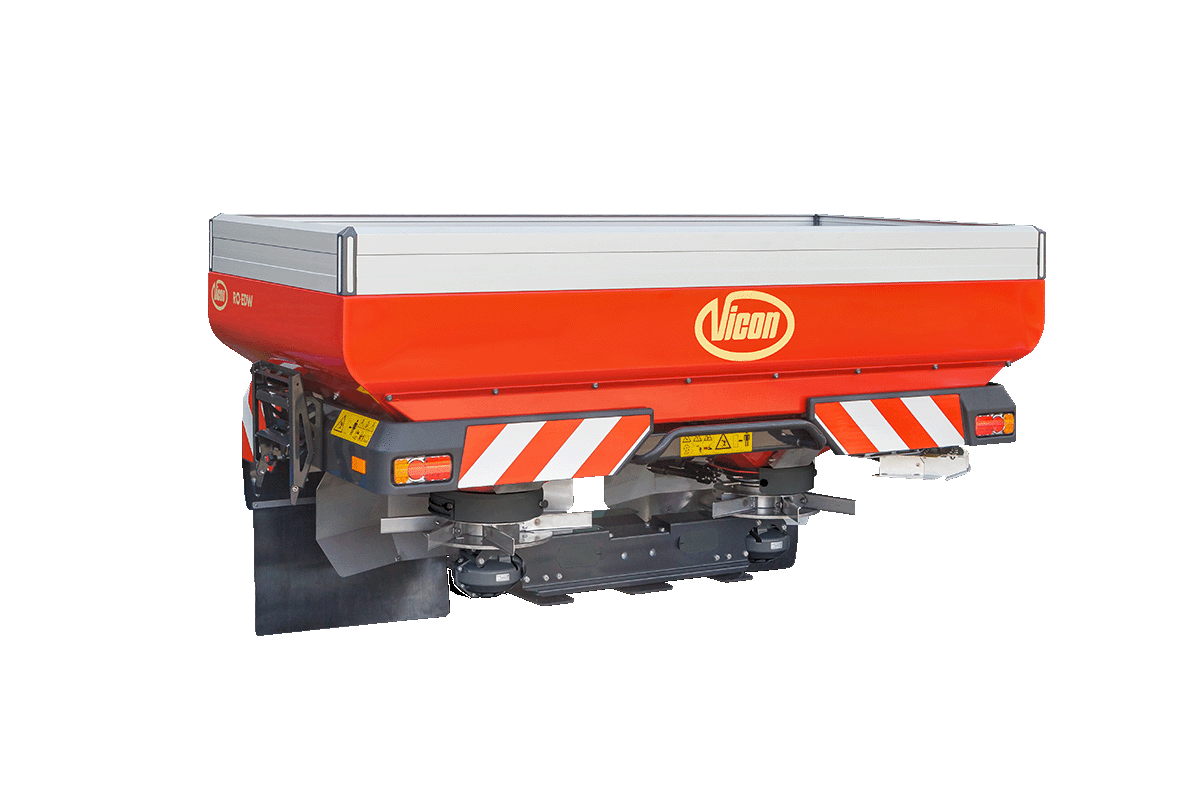

RO-EDW | ISOBUS compatible
Hopper capacity (ltr) - 1875
Filling height (cm) - 119
Width (cm) - 290
Filling width (cm) - 284
Empty weight (kg) - 695
Spread width (m) - 12-54*
Output (kg/min) - 10-320
Controls - ISOBUS
LED lighting set - Standard
Border spreading plate - Option
TrimFlow border spreading system - Option
* Depending on tertiliser type and type of vanes.
