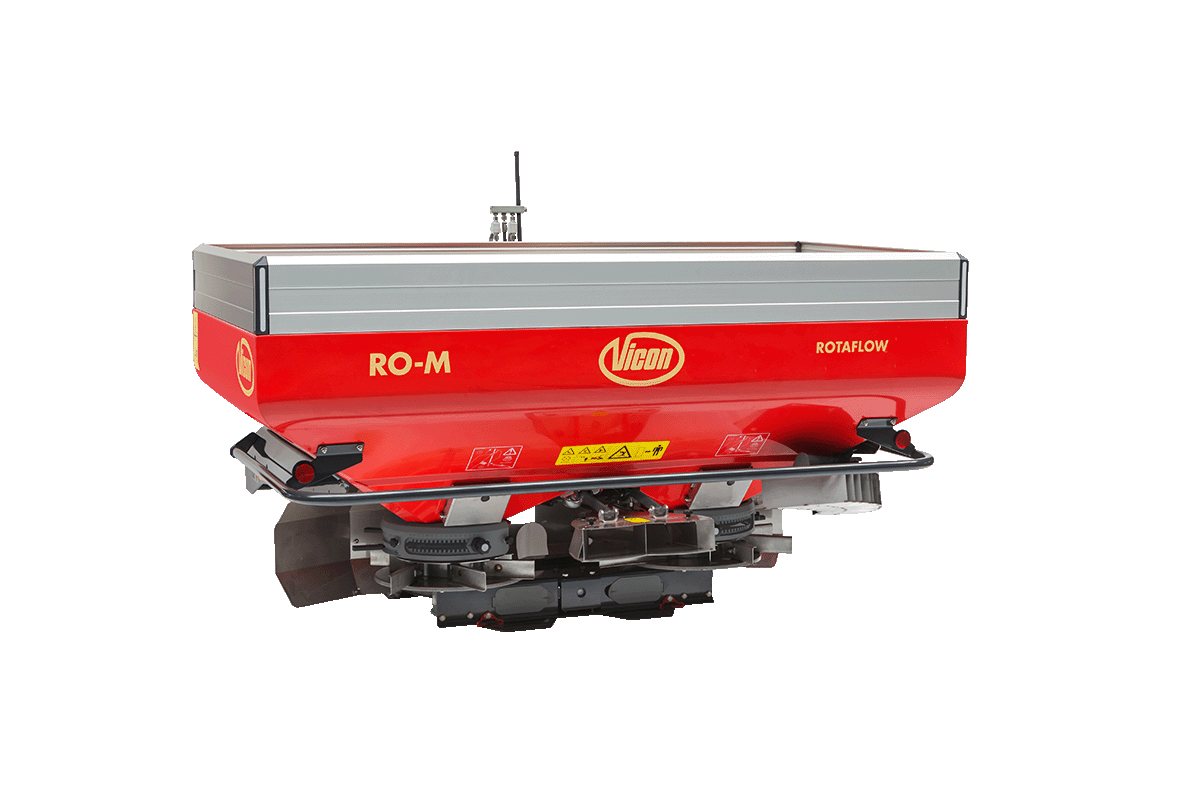

The RO-M is medium in size and volume, but can spread up to 28m and comes with the RotaFlow system as standard. It also comes with 8 vanes per disc for the same spreading quality as the bigger spreaders. The RO-M spreader can be equipped with most of the accessories for larger spreaders such as aluminium hopper extensions, TrimFlow for border spreading, parking frame or LED lights. The RO-M spreader can be operated hydraulically or electrically. The electric controlled spreader can be operated from the tractor via the Comfort Control II computer.
- RotaFlow system - smooth acceleration of fertiliser
- FlowPilot for quick and easy adjustment
- Optimal spreading along borders
- Optionally electric control from the cab available
Features
RotaFlow Principle
No impact, no fragmentation, no dust: Central release point, smooth acceleration and centrifugal force accelerates fertiliser up to disc speed before it reaches the vane.
FlowPilot
The compact FlowPilot 'dashboard' gives you considerably simplified accurate setting and adjustment of application rates. Two hydraulically operated metering plates, each with three discharge openings ensure an equal fertiliser flow from the hopper to the spreading discs.
Accurate spreading pattern
A double overlap spreading pattern gives unrivalled accuracy. The 8 vanes per discs are ensuring a continuous flow of fertiliser to the field. This is important for high capacity spreading and forward speed.
Guaranteed accuracy on slopes
The fertiliser always contacts the vanes at the same point, also on slopes and travels the complete length of the vane.
Consistent spreading pattern
Consistent spreading pattern: Eight vanes per disc, eight sectors per revolution give an equal distribution. Double overlap spreading pattern.
Border Spreading
The Border Spreading Indicator (BSI) on the standard weighing spreaders (RO-M EW, RO-M W PRO, RO-EDW) indicates which border spreading device is active. For the GEOSPREAD machines this is integrated in the electronics and the active device will be displayed on the control terminal in the cab.
Specifications
RO-M 1100
Hopper capacity (ltr) - 1100
Filling height (cm) - 100
Width (cm) - 220
Filling width (cm) - 214
Empty weight (kg) - 330
Spread width (m) - 10-24*
Output (kg/min) - 10-320
Controls - Hydraulic/Electric
LED lighting set - Option
Border spreading plate - Option
TrimFlow border spreading system - Option
*Dependent on type of fertiliser and vanes.
