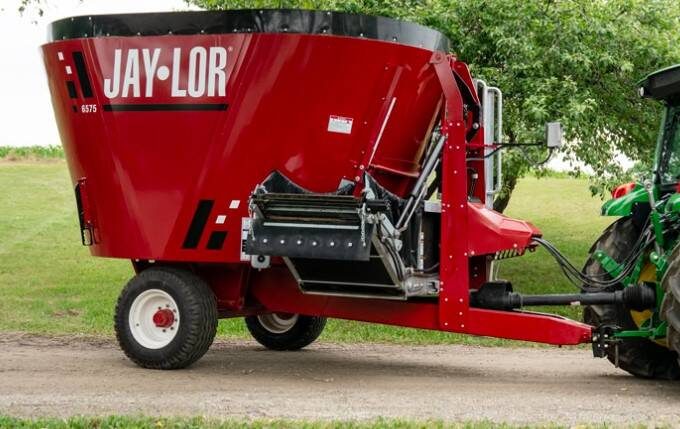

Jaylor Single Auger mixers are available in a variety of configurations, ranging in capacity from 9.9m3 to 16.3m3.

These mixers are ideal for feeding small to mid-sized dairy and cow-calf operations, medium-sized beef feedlots (especially backgrounding and grower operations), and large sheep and goat facilities.

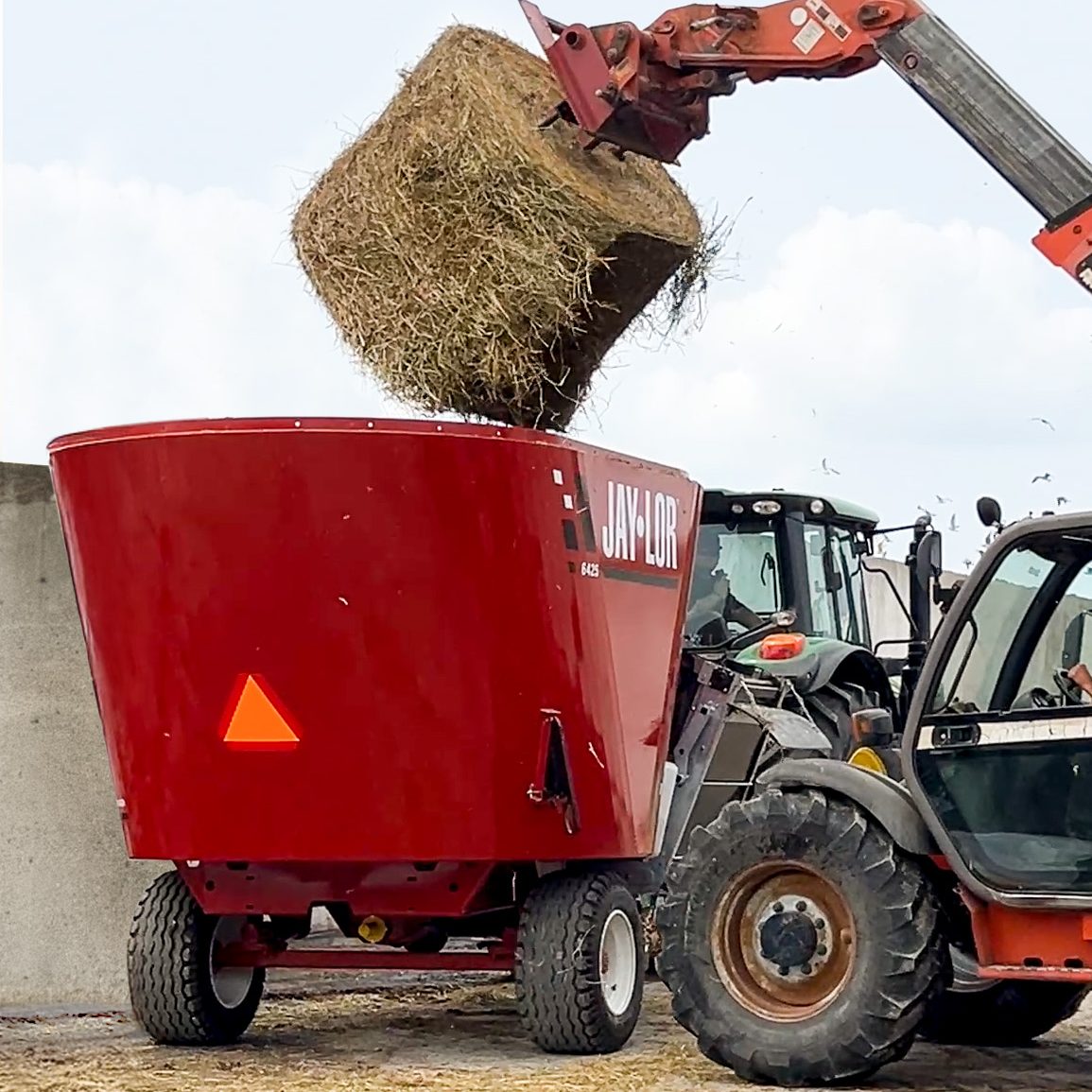

Each Jaylor is a class leader in quickly processing round or square baled hay and/or baleage into uniform rations that will resist sorting.

All Jaylor 5000 Series mixers come standard with Jaylor’s 19mm patented square cut auger.

  • Variety of configurations
  • Capacity from 9.9m3 to 16.3m3
  • Resist sorting
  • Jaylor 5000 Series mixers with Jaylor’s 19mm patented square cut auger
  • For feeding small to mid-sized dairy and cow-calf operations, medium-sized beef feedlots, large sheep and goat facilities

Single Auger

Jaylor Single Auger

Features

Ladder and platform

Mixer level

Shaker box

Square Cut auger with sloped top

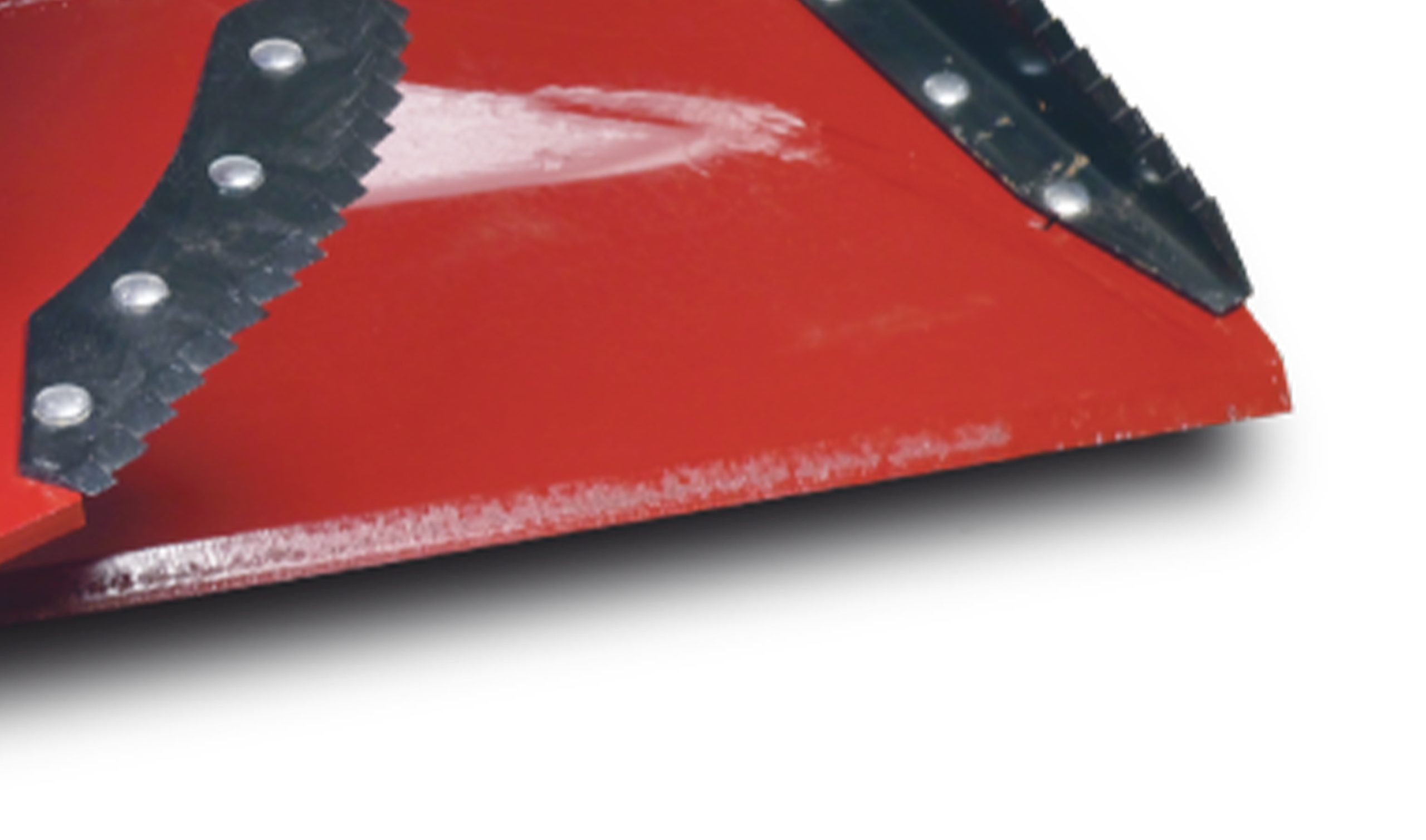

Slide plate technology

Tungsten carbide coated knives

Welded mixing chamber

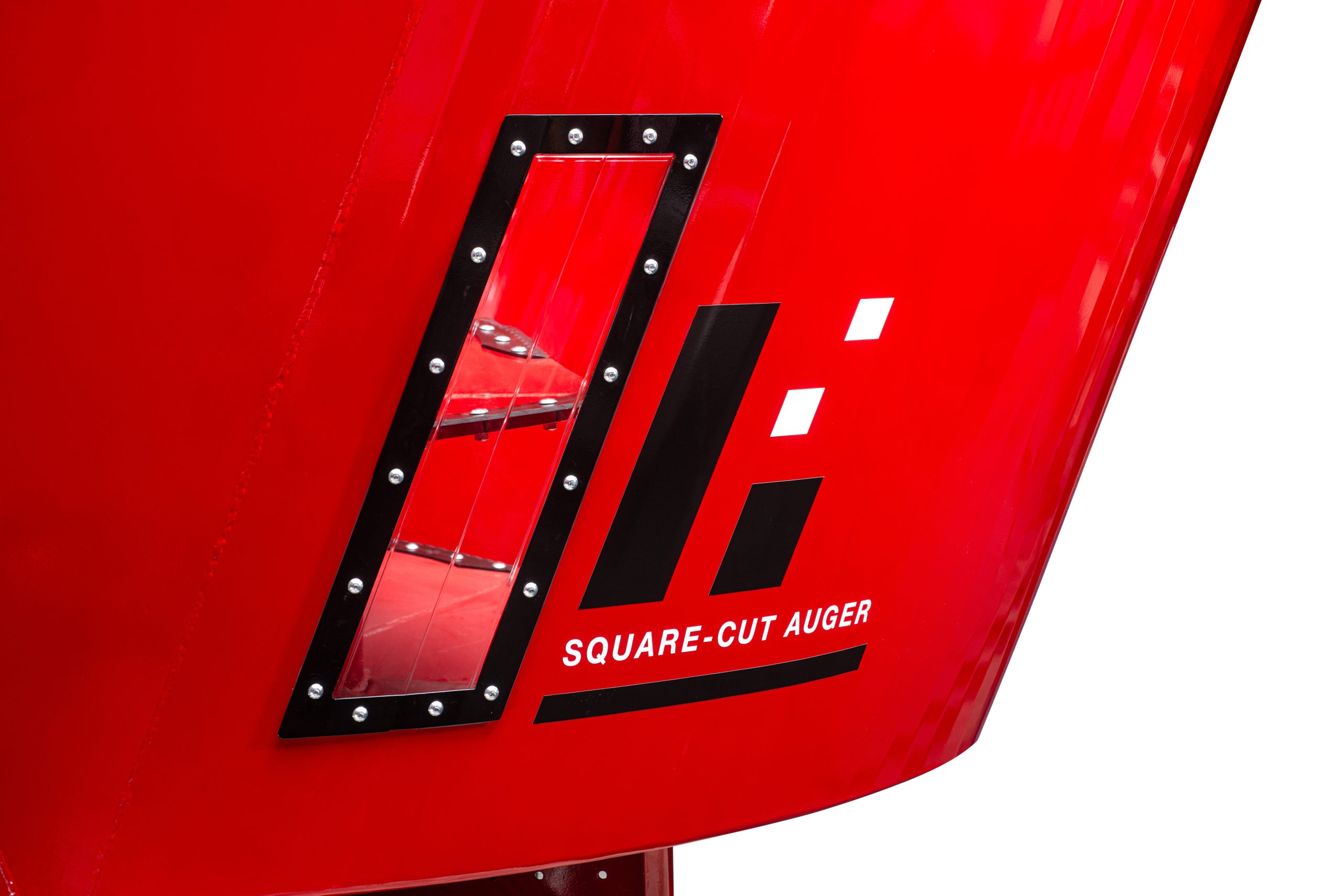

Mix viewing window

Two restrictor blades

Structurally reinforced frame

Rapid discharge door

Galvanized 1.8m x 1m discharge conveyor

Adjustable cast towing ball hitch

Heavy duty hubs

Heavy duty single straight axle

Three point weigh system

Heavy duty planetary gearbox

Patented open loop oil reservoir

Shear bolt protection

Wheel assembly - single straight axle

Specifications

Jaylor 5350

Capacity - 12 cubic metres

Min HP (PTO) - 60hp

PTO Speed - 540

Standard Knives per Auger - 9

Standard Extension - 16"

Jaylor 5425

Capacity - 15.3 cubic metres

Min HP (PTO) - 70hp

PTO Speed - 540

Standard Knives per Auger - 9

Standard Extension - 16"

Jaylor 5575

Capacity - 16.3 cubic metres

Min HP (PTO) - 80hp

PTO Speed - 540

Standard Knives per Auger - 11

Standard Extension - 16"
