With the same practical design and easy to use operation that all SAM’s are known for, the SAM Combo Spreaders provide extra versatility around what you are able to spread.

They are capable of spreading chemical fertiliser including; superphosphate, urea and lime. But will also spread most organic product like chicken and pig manure, screw-pressed effluent and sand.

Sizes come in 3.8, & 6 tonne. All come standard with an 800mm floor belt.

Models available include:

  • SAM 3.8t Single Axle Combo Spreader
  • SAM 6t Single Axle Combo Spreader (Manual)
  • SAM 6t Single Axle Combo Spreader (Electric)
  • SAM 6t Single Axle Combo Spreader (ISOBUS)

Features

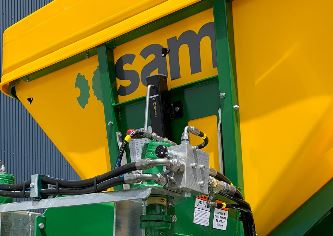

Stainless back end

The bulk of the back end is constructed from stainless steel. This cuts out rust and means the life of your running gear is extended. The flat discs, vanes and spinner tubes are all stainless. They connect to a pair of extremely reliable hydraulic motors. The roller bearings are easily adjustable for you and keep discs firm.

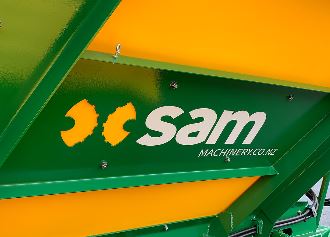

The paintwork may outlast you!

Every SAM has an advanced new paint procedure. This application has been chosen for its hard-wearing toughness. They are firstly blasted with a steel-grit, then a zinc spray is applied (thermal-arc), a primer coat then the two pot epoxy paint. Mega-solid!

Tough rust resistant hopper

These plastic bins have shown themselves to be very strong and reliable. They are made from UV-protected polyethylene. Fertiliser can be extremely corrosive and the SAM bin prevents that by being rust-free and easy clean. Fertiliser slips down the sides easily and washes off well.

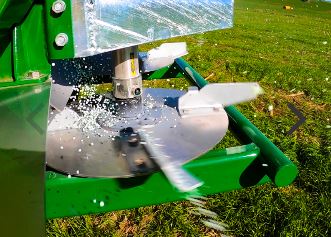

Consistent spread control

Setting the rate you wish to spread is simply by rear door adjustment. The double spinner design gives a nice, accurate, even spread pattern for a wide range of product.

Specifications

3.8 Tonne Combo

Axle Type: Single axle 70mm

Axle Capacity: 6,000kg

Wheel Type: 400/60 x 15.5 14-ply

Jack Type: 70mm screw jack

Overall Length: 4.9m

Overall Width: 2.3m

Overall Height: 1.67m

Bin Width: 2.1m

Bin Length: 2.9m

Capacity: 3m3

Superphosphate: (1.2): 3.6T

Lime (1.6): 4.8T

Urea (.77): 2.3T

Cover: Standard

LED Road Lights: Standard

Swivel Coupling: Standard

6 Tonne Combo

Axle Type: Single axle 80mm

Axle Capacity: 8,000kg

Wheel Type: 550/60 x 22.5

Jack Type: 70mm screw jack

Overall Length: 4.9m

Overall Width: 2.8m

Overall Height: 2.38m

Bin Width: 2.1m

Bin Length: 4.1m

Capacity: 5m3

Superphosphate: (1.2): 6T

Lime (1.6): 8T

Urea (.77): 3.8T

Cover: Standard

LED Road Lights: Standard

Swivel Coupling: Standard
