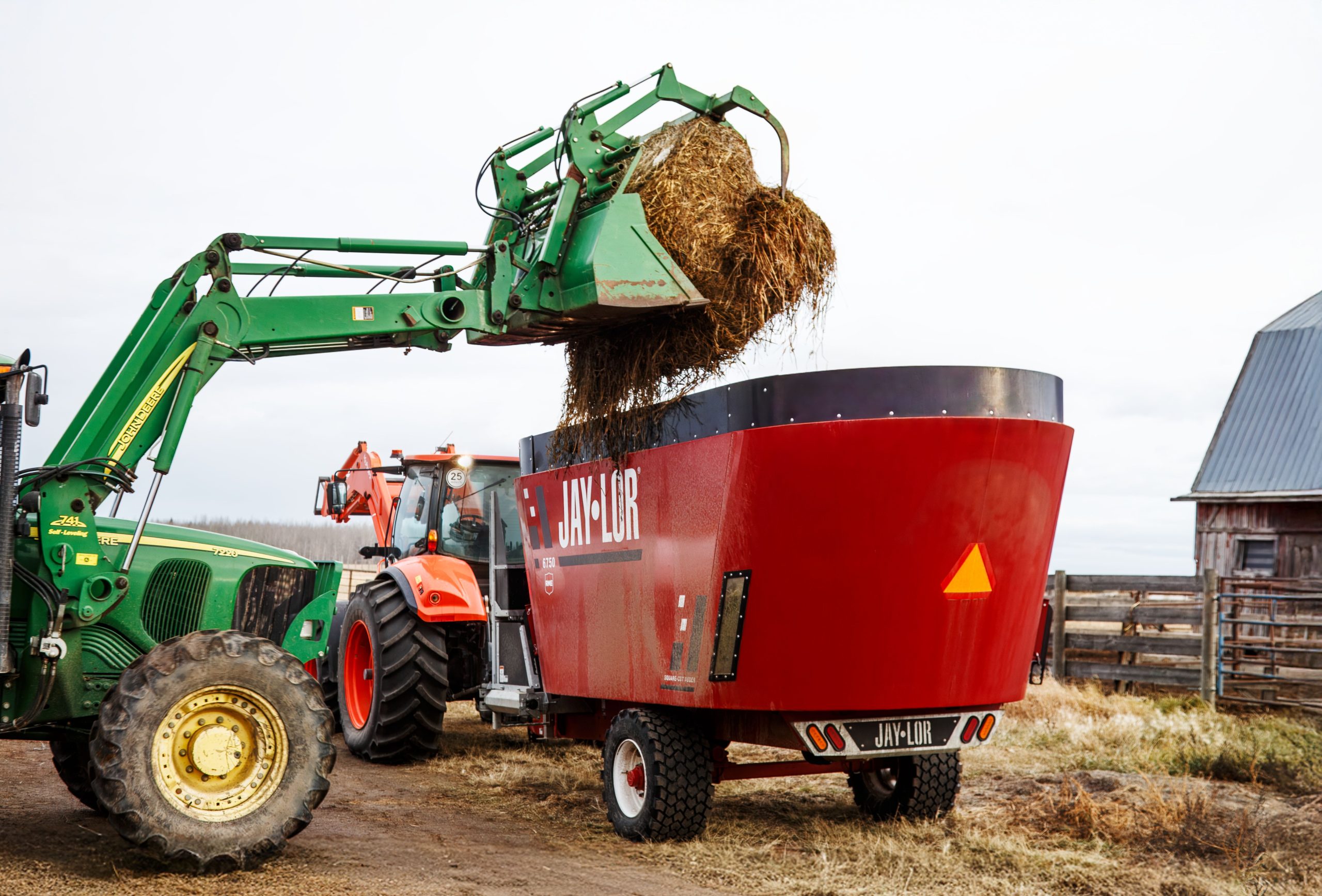

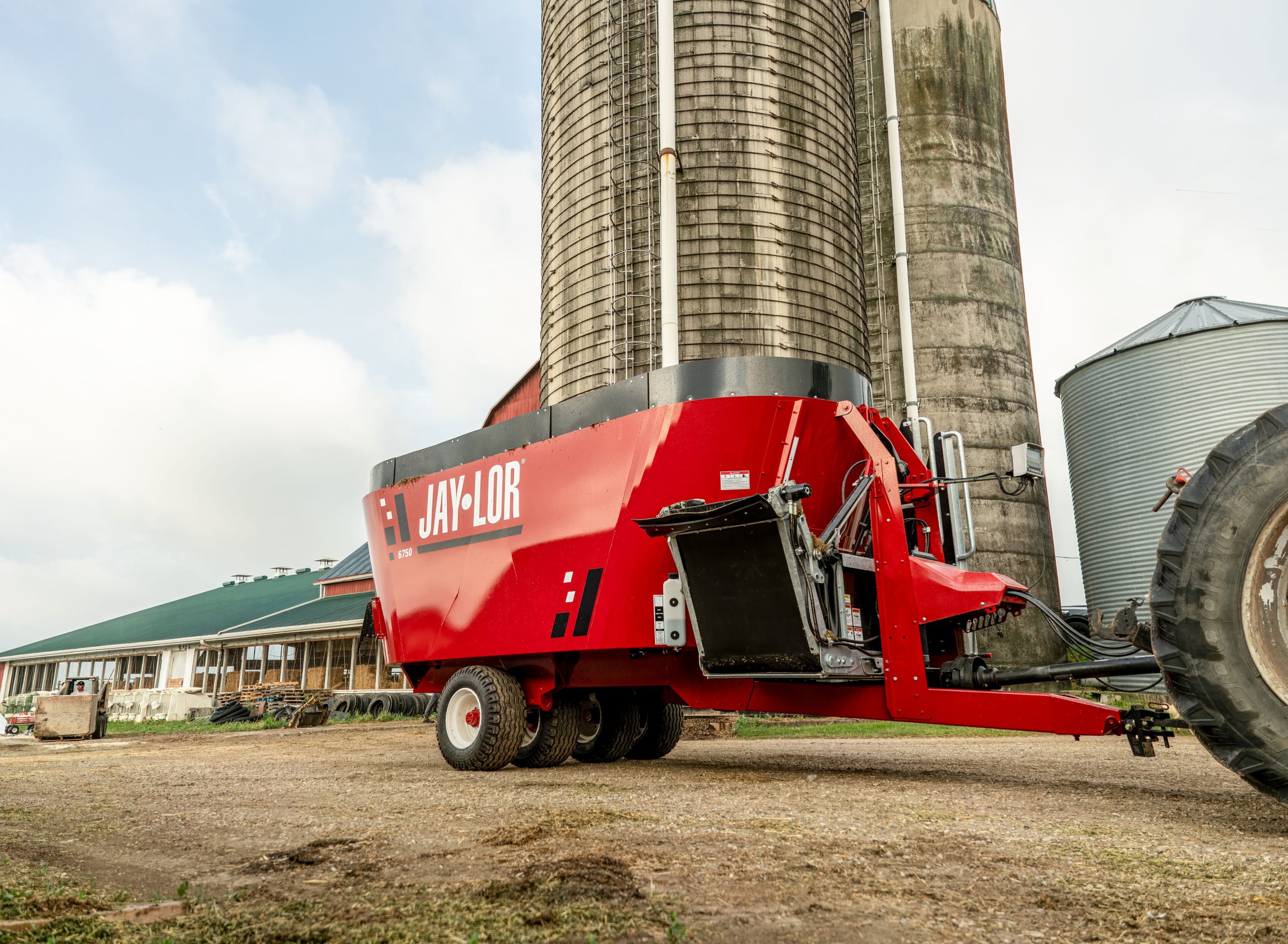

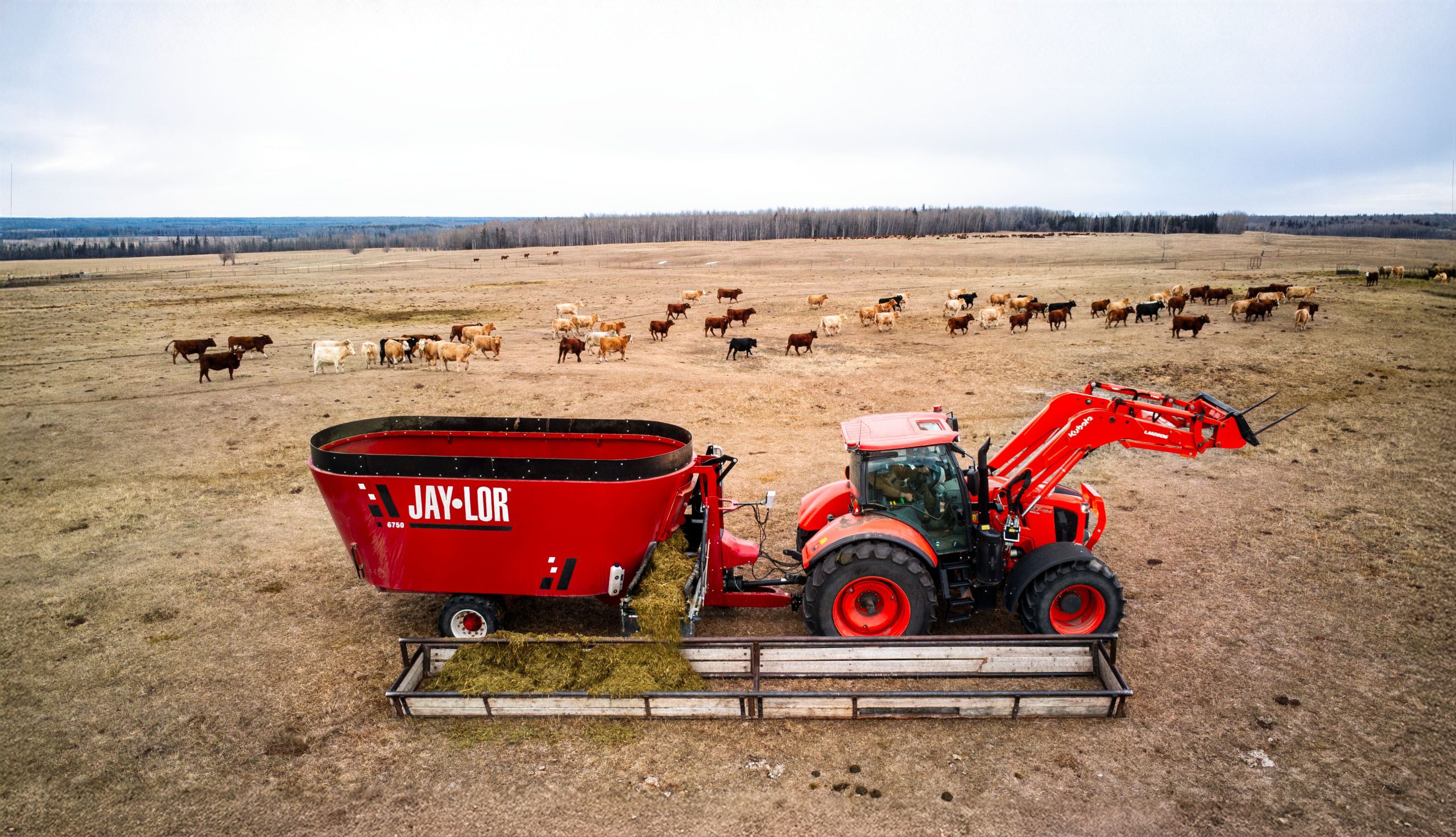

The Jaylor 6750 twin-auger is a cost-effective mixer with 21 m³ capacity. It is built to a high specification and operates with a 1000 PTO rpm input, which helps reduce the load on the tractor.
This unit also comes standard with the reduction start-up gearbox, combined with the higher input speed and the gearbox’s twin-reduction design, this allows the augers to maintain a steady 38 rpm. Fitted with reinforced 17-inch rims and 26-ply tyres, the mixer can handle a wet mixed load of over 11,000 kg across four wheels without strain.
The mixer rides on a twin-axle with centre oscillation, which helps smooth its travel over rough ground: this design reduces bowl pitching by over 50% when moving over nib walls. All the twin-auger machines in the range come with wide-angle Series 8 drive shafts. The empty weight of the unit is just 5,900 kg. The standard warranty package applies.
- Capacity to 22.1m3
- For mixing pre-processed silage and grain rations

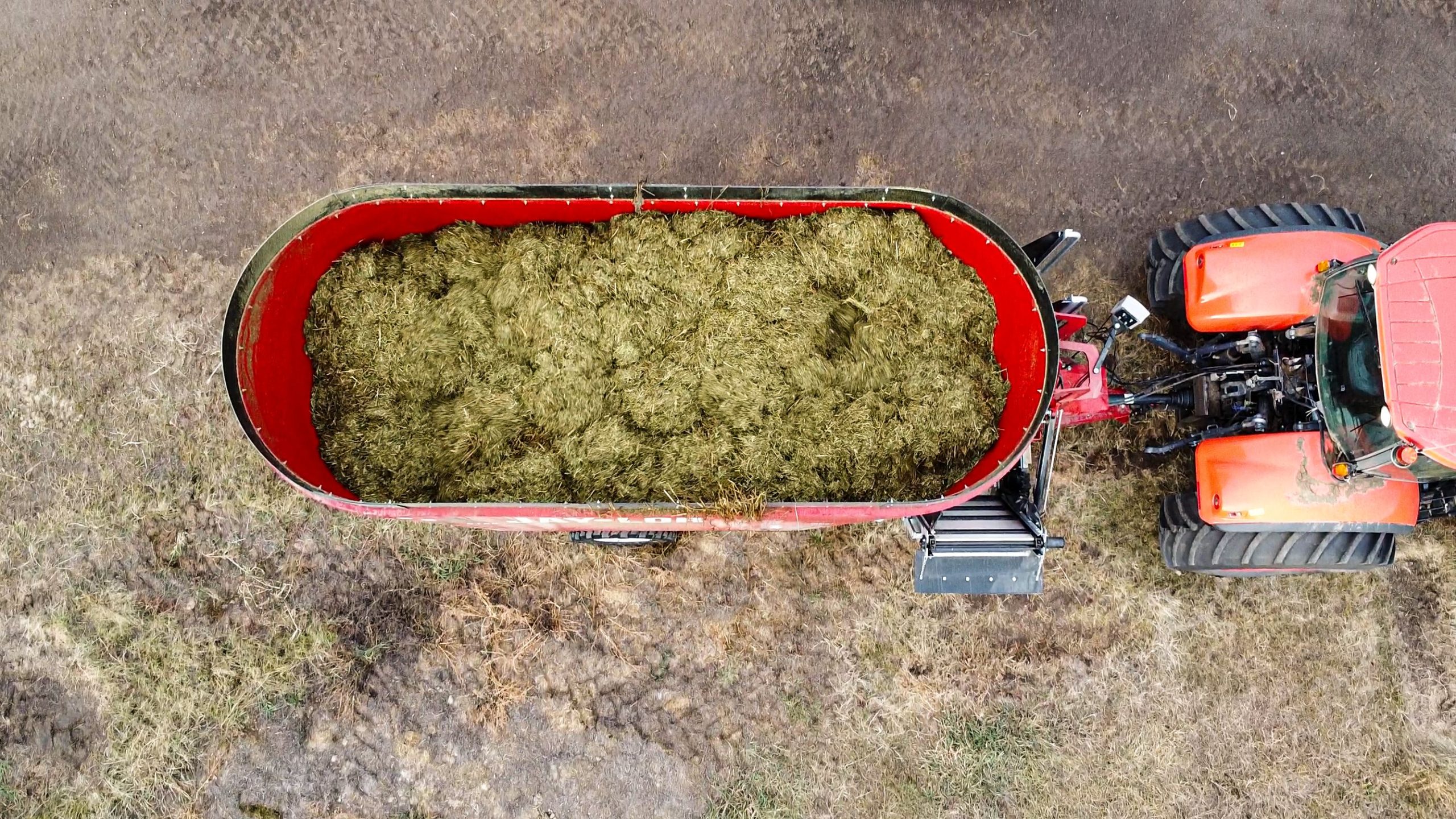

- Full mix uniformity is achieved in as little as three to five minutes
- Save time while using 20% less horsepower

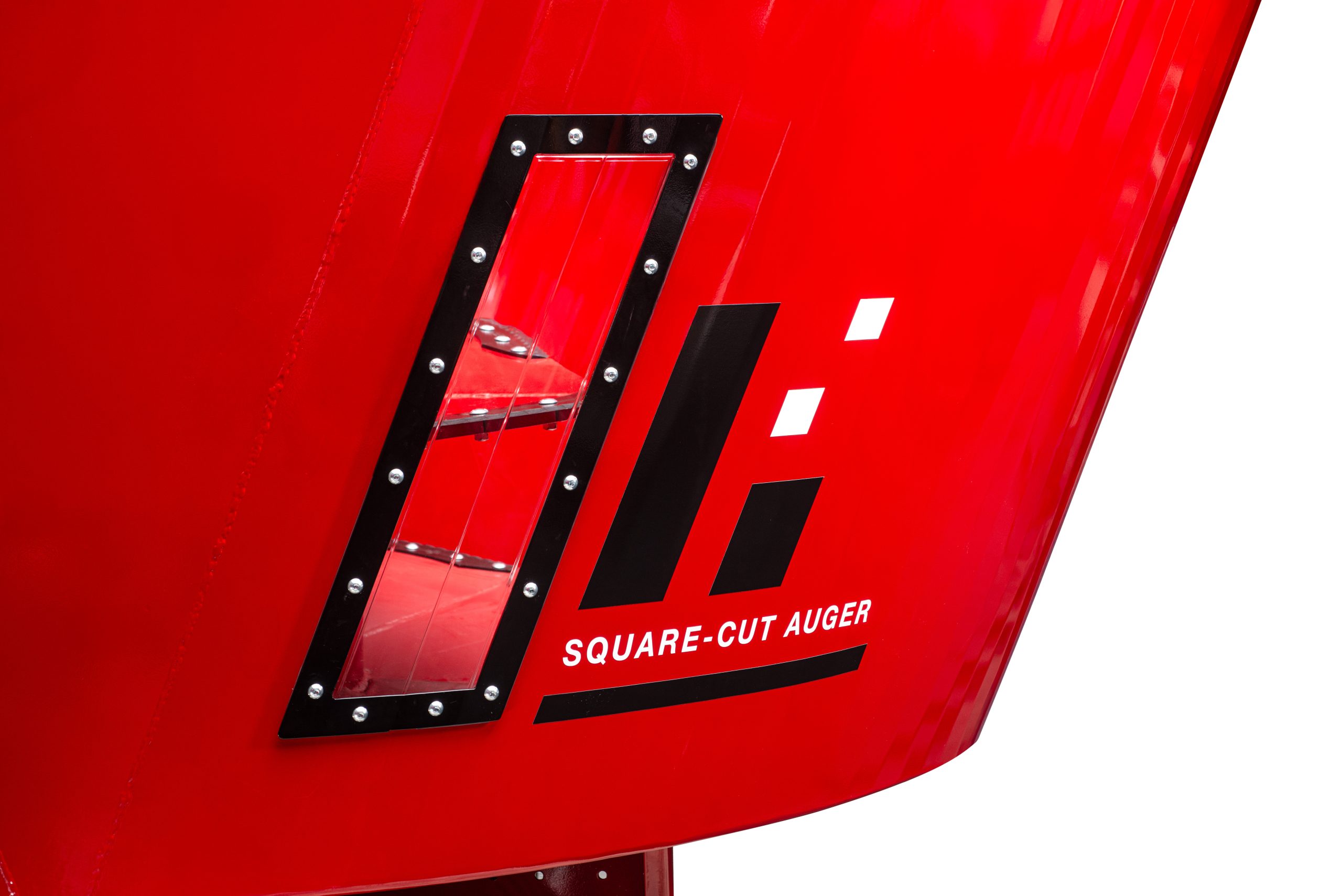

- Jaylor’s 19mm patented square cut auger
Features

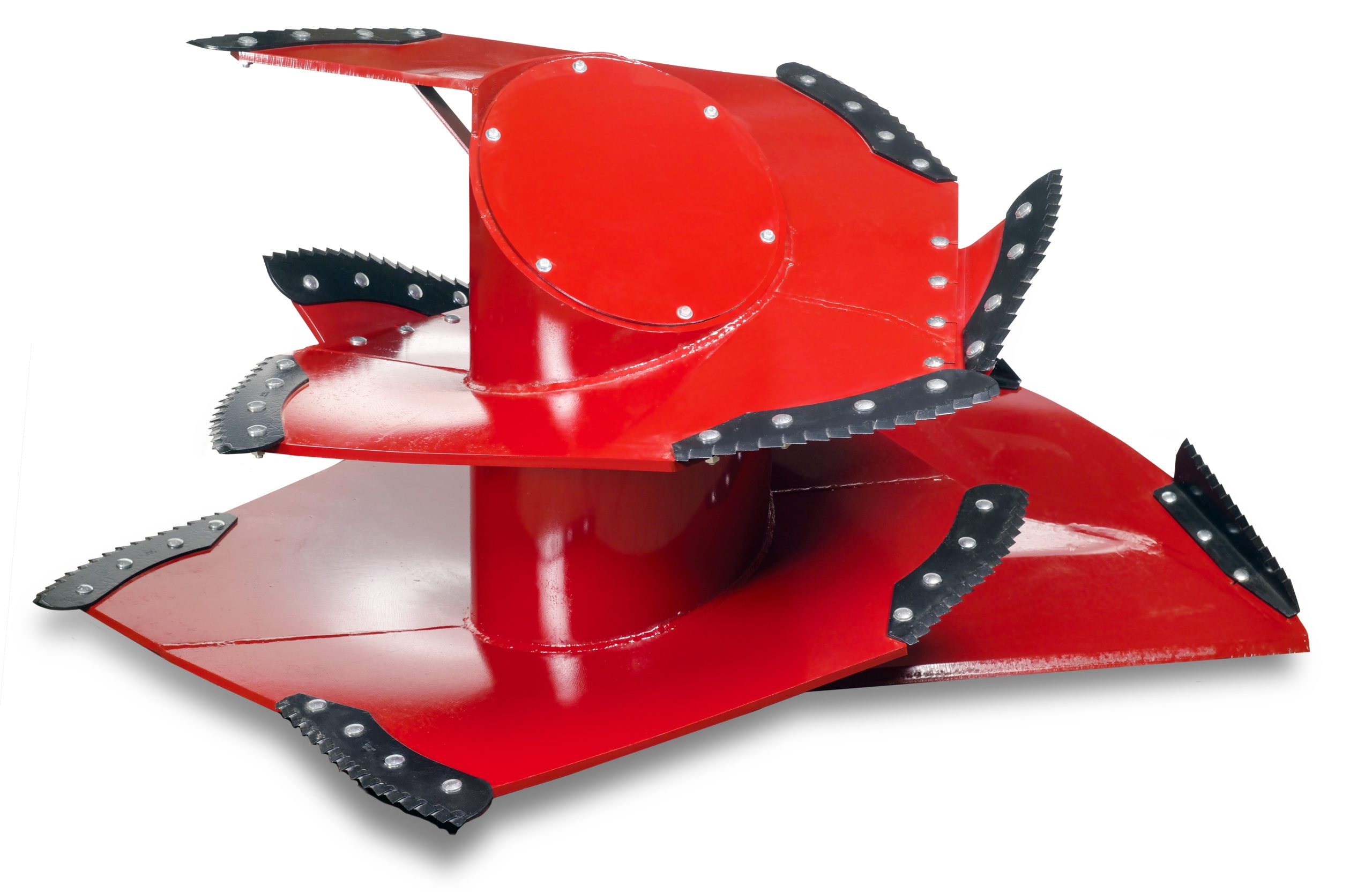

Square-Cut Edges
Patented design to reduce pressure on the mix, rapidly and efficiently process baled forage into a uniform TMR, that resists sorting and delivers consistent shaker box results.

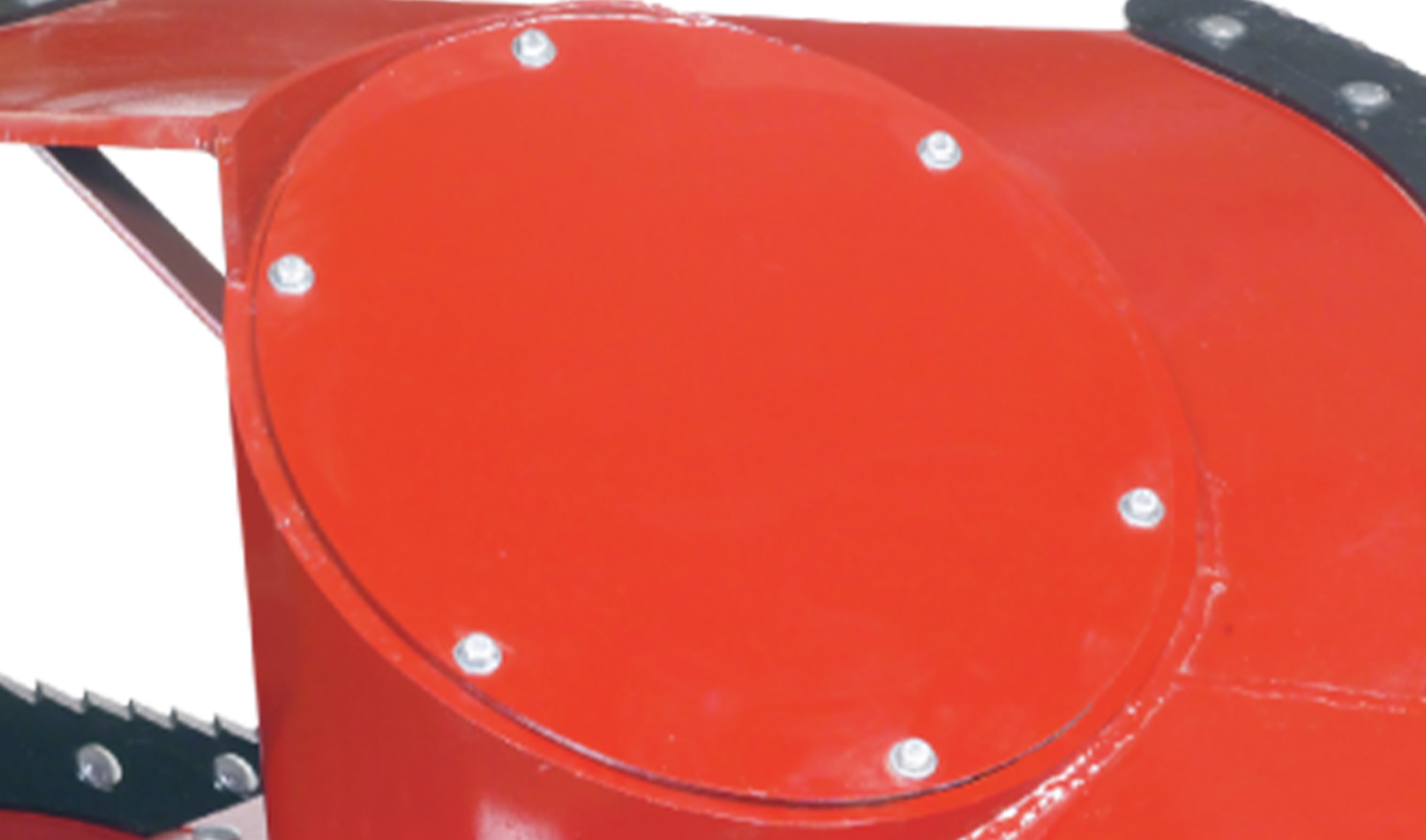

Sloped Top
Exclusive, patented design, prevents bale bridging, enabling rapid cutting and efficient mixing of even the toughest forages, enhancing overall feed quality.

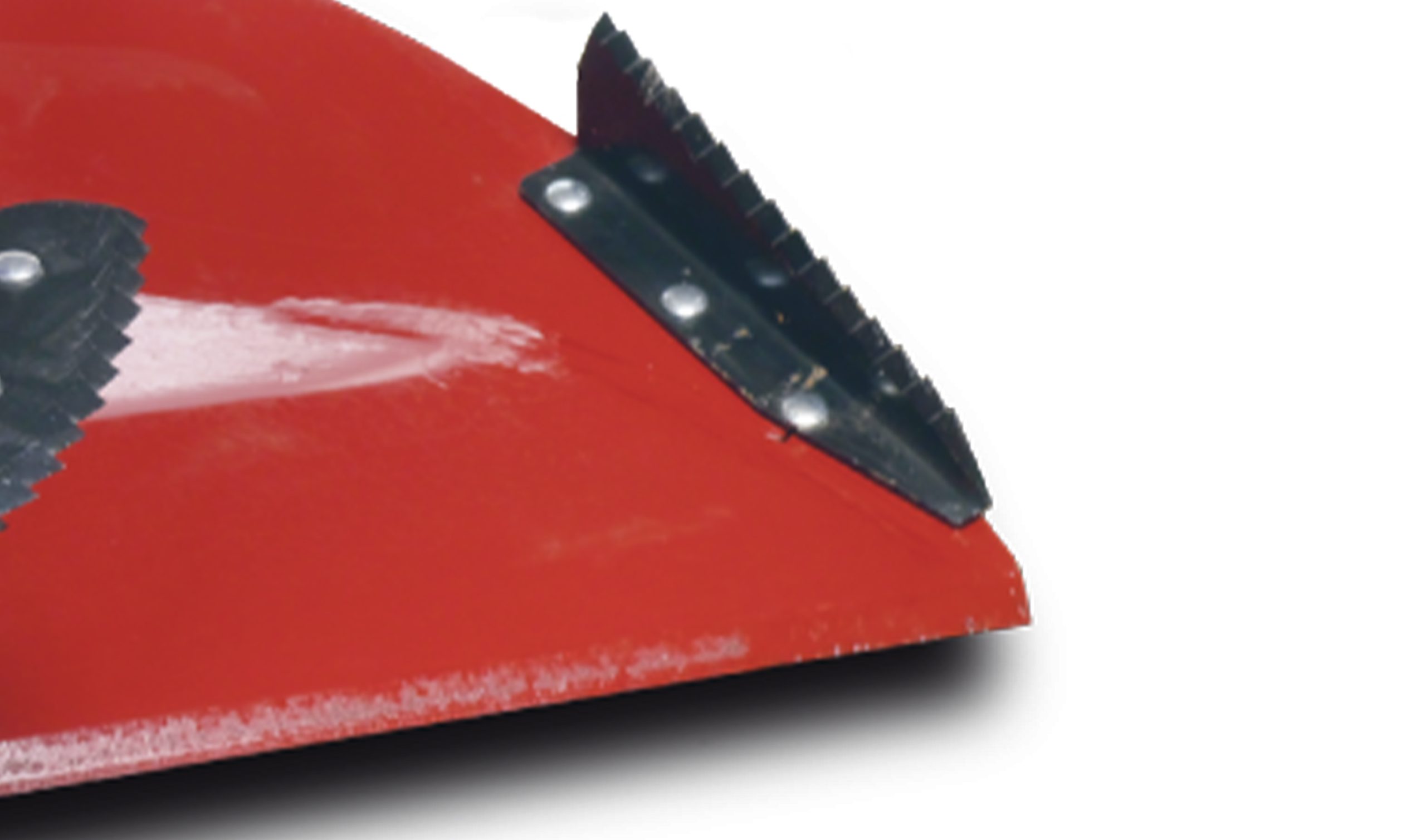

Vertical Knives
Enhances cutting efficiency, reducing forage processing times and improving the distribution of high forage rations to ensure a cleaner, more uniform mix

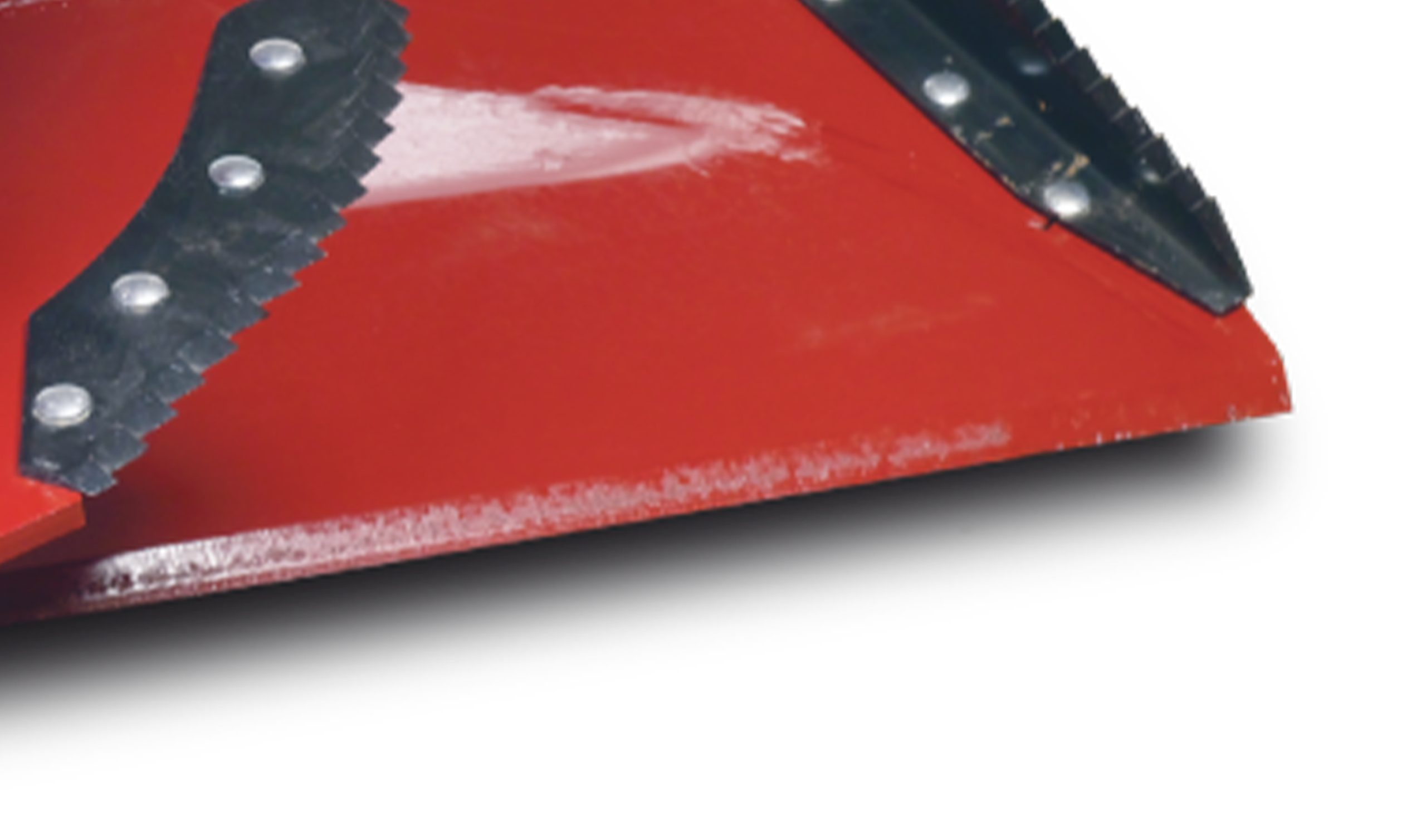

Slide Plate Technology
Gathers feed gently into the auger, reducing friction and cutting horsepower needs by 20%, which means lower energy costs and a smoother operation
Specifications
Twin Auger - 6750
Capacity - 22.1 cubic metres
Min HP (PTO) - 115
PTO Speed - 1000rpm
Standard Knives per Auger - 18
Standard Extension - 16"
