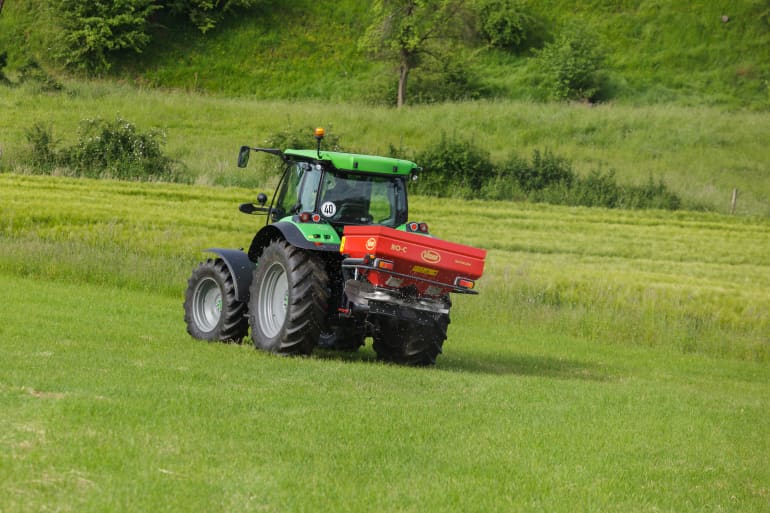

The RO-C is controlled either manually or hydraulically. It is the most compact spreader in the range, but features all the elements of the RotaFlow spreader line.
The working width is determined by the vane length. The four vanes can also be detached easily for a static calibration test. Application rate adjustment from the calibration position is easy to access.
- Controlled either manually or hydraulically
- Compact spreader in the range
- Features all the elements of the RotaFlow spreader line.
- Working width is determined by the vane length
- The four vanes can also be detached easily for a static calibration test.
Features

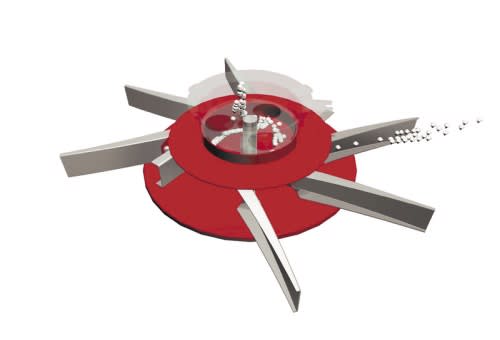

RotaFlow Principle
No impact, no fragmentation, no dust: Central release point, smooth acceleration and centrifugal force accelerates fertiliser up to disc speed before it reaches the vane.

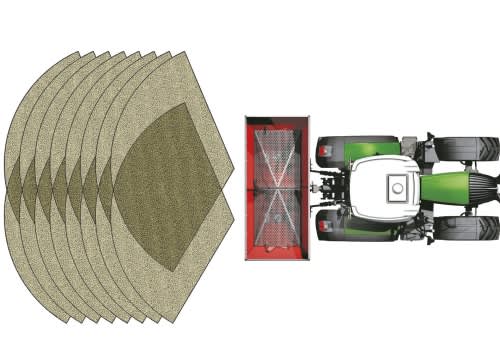

Accurate spreading pattern
A double overlap spreading pattern gives unrivalled accuracy. The 8 vanes per discs are ensuring a continuous flow of fertiliser to the field. This is important for high capacity spreading and forward speed.

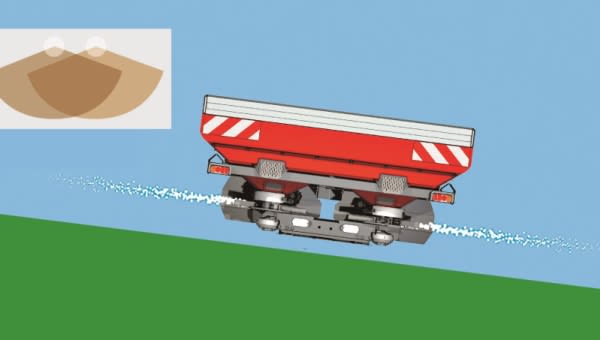

Guaranteed accuracy on slopes
The fertiliser always contacts the vanes at the same point, also on slopes and travels the complete length of the vane.
Consistent spreading pattern
Consistent spreading pattern: Eight vanes per disc, eight sectors per revolution give an equal distribution. Double overlap spreading pattern.
Border Spreading
Vicon offers the border spreading plate or tramline cylinder for border spreading with the RO-C. With one-side boundary spreading the tractor is driven approximately 2 metres from the field border. With boundary track spreading the tractor is driving in the first tramline and is spreading to the border. The distance to the border is the half of the working width.

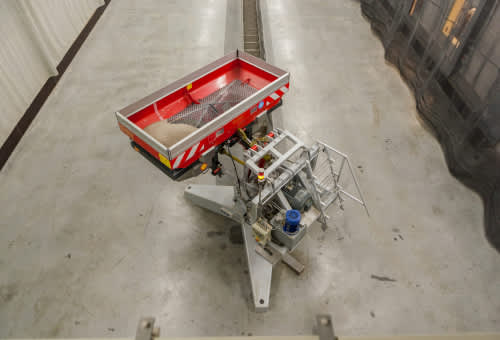

Vicon Spreader Competence Centre
The Spreader Competence Centre is using the most modern technology available in hard and software, allowing the measurement of complete overlap patterns in 3D. Instead of only measuring the spreading pattern in one line corresponding to the working width, this technology creates a full pattern showing a complete 3D spreading profile of the fertiliser.

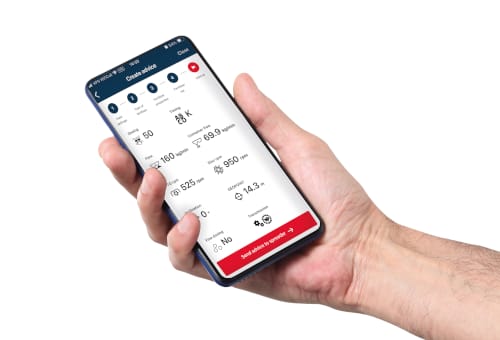

Get direct acces to the spreading charts
Exact advice for each Vicon spreader at any working width, application rate and driving speed. Direct access to most recent test results at: www.viconspreadingcharts.com
Specifications
RO-C 700
Hopper capacity (ltr) - 700
Filling height (cm) - 96
Width (cm) - 154
Filling width (cm) - 148
Empty weight (kg) - 250
Spread width (m) - 9-18*
Output (kg/min) - 10-230
Controls - Hydraulic
LED lighting set - Option
Border spreading plate - Option
*Dependent on type of fertiliser and vanes.
